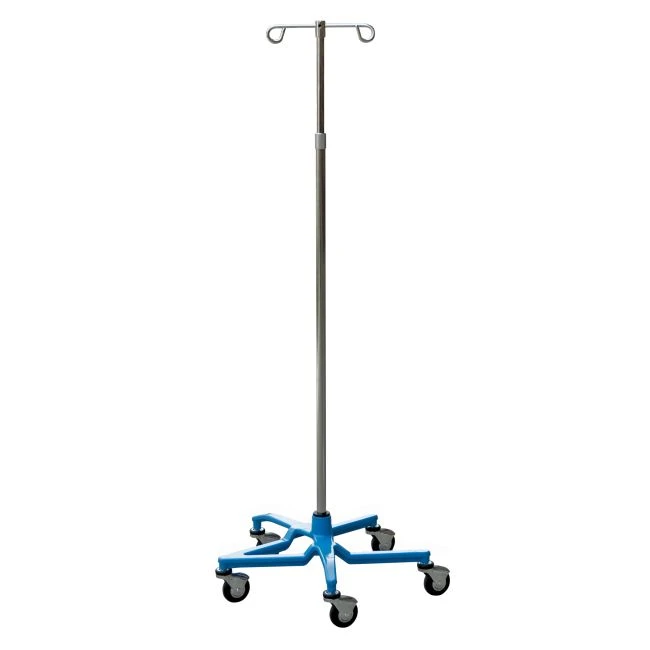

Maxtec SmartStack Stackable Premium I.V. Stand (R100P49-001)

Out of stock
SKU
CESS-727246-00001
MPN
R100P49-001

Maxtec's patented SmartStack design allows for the IV Stand bases to interlock, reducing the space used when storing them.

Quote Information

The space-saving SmartStack patient care stand from Maxtec has a specially designed 24” base that provides extra support and durability.

Its patented design will stack neatly with other bases of its kind (22” and 24” SmartStacks), creating extra storage space, a more organized facility, and easy transportation of multiple stands at once.

  • Patented nesting design allows for extra storage space, better facility organization, and the simultaneous transportation of multiple stands.
  • 2 inches wider and nearly 5 pounds heavier than our previous model.
  • 100% cast aluminum base.
  • Large, smooth-rolling casters with 2 wheel locks.
  • Includes 4 fixed ram-horn hooks.
  • Easy, one-handed height adjustment.
  • Collapsed height of 65″ with an extended height of 88″.
  • 100 lb. maximum load capacity.
  • Patent# 8,196,874 B2
  • Japan# 5214740
Specifications
DiscontinuedNo
Additional Specifications:
  • Product Type: I.V. Stand
  • Collapsed Height Pole: 54", Pole with Base 61" (Measured from Floor to Top of Hook Assembly)
  • Extended Height Pole Extended 86", Pole with Base 93" (Measured from Floor to Top of Hook Assembly)
  • Casters: Neoprene Tread, Chrome Steel, 3" Quantity: 5, 2 Locking, 3 Non-Locking
  • Weight Capacity: 100lbs Total, 50 lbs on Top Portion, 11 lbs Maximum One Hook
  • Wheel Base Diameter: 24"
  • Nesting Base: 5" (Center to Center)
  • Pole Diameter: 0.98" (Bottom Portion) 0.70" (Upper Portion)
  • Base Material: Powder Coated Aluminum
  • Pole Material: Stainless Steel
  • Ram-Horn Hooks: 4 Fixed
  • Weight: 19 lbs
Unit of Measure (UOM)Each
Country of OriginUnited States Of America
