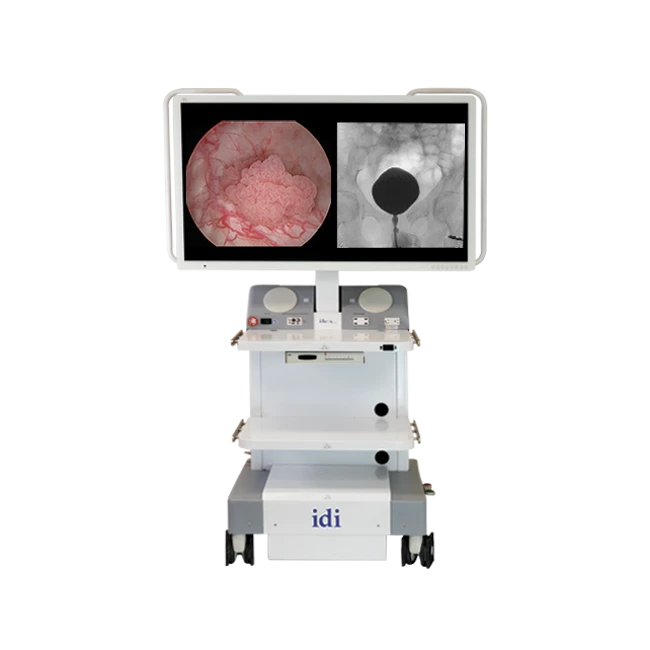

Image Diagnostics Inc ilex55 Video Integration System

In stock

At a glance: FSN 55"/139cm 4K UHD medical monitor. Intuitive color coded screen layout and source selection. Tablet PC can be mounted on ilex base or tableside.

The Image Diagnostics Inc ilex55 Video Integration System is much more than simply a monitor on a mobile stand. ilex includes the complex electronics associated with fixed room integration solutions for scaling, conversion and switching devices and incorporates them into our mobile chassis.

All ilex integration solutions incorporate clinically correct color and gray scale pallets, including DICOM gamma settings to ensure the level of clinical compliance not found in consumer grade products.


  • Accepts digital and analog inputs from multiple sources including: C-Arm, ultrasound, echo, hemodynam­ics, microscopes, cameras, image guidance, & PACS workstations.
  • 55" (140cm) 4k UHD Surgical Monitor (includes gamma, grayscale and color correct curves for display of medical sources).
  • Three equipment shelves.
  • Hand held remote control for video formatting.
  • Bluetooth speaker system.
  • Built in USB charging station.


  • FSN 55"/139cm 4K UHD medical monitor.
  • Three equipment shelves 19" (48cm) x 28" (71cm) and one platform 19" (48cm) x 20" (51cm).
  • Two video cable storage hooks.
  • 5"/127mm casters with lock, free float and directional control.
  • Support column with powered 20" (508mm) vertical travel and 0 degrees , 2.5 degrees and 5 degrees manual tilt.
  • Bluetooth speaker system with volume control.
  • Configurable video signal input panels with four DVI inputs, three BNC inputs, one S-Video input, and four VGA inputs.
  • Four USB ports.
  • Two 120v power ports.
  • Remote control capability for monitor.
  • Vertical transport handles
  • Cable kit suitable for connecting one SOG Lex/Right C-Arm, one DVI Leu/Right C-Arm, one VGA Ultrasound or hemodynamic monitor, and one DVI ultrasound or camera.
  • Two IR remote monitor controllers.
  • Two boxes of sterile remote control drapes 15 per box.
Additional Specifications:
Display4K UHD resolution, (55"), 3840 x 2160 pixels, Aspect: 16:9
Casters5" casters (125mm) with three position locking system for easy transport and positioning
Unit of Measure (UOM)Each
Dimensions81" x 48" x 80"
Warranty2 year parts, 2 year labor
Country of OriginUnited States Of America
