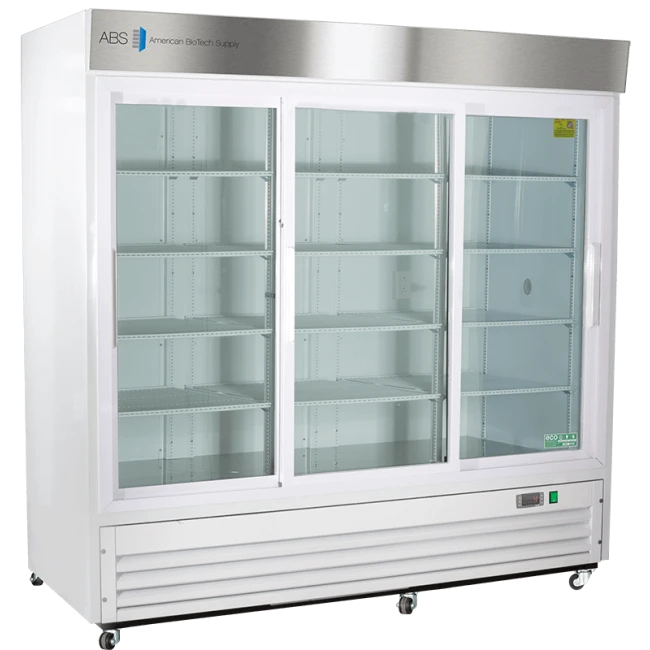

American BioTech Supply Standard Glass Door Chromatography Refrigerator, 69 Cu. Ft., ABT-CS-69

In stock
Features include: Three glass sliding doors, twelve adjustable shelves, keyed door locks and 3.5" swivel casters.

The standard chromatography refrigerators feature a microprocessor temperature controller and display, allowing for precise temperature control, verification and recovery versus mechanical style thermostats.

One interior duplex electrical outlet and one side all port hole is provided to simplify the setup and operation of laboratory procedures. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings.

All Chromatography units require two electrical outlets.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.


  • Three sliding glass doors, self-closing (energy efficient, double pane vacuum insulated)
  • Forced draft air circulation
  • One GFCI protected duplex electrical outlet
  • One 2" access port with spring loaded, self-closing gasketed metal cover
  • Integrated door handles and magnetic door gasket for positive seal
  • LED interior lights are safety shielded and switch controlled
  • Advanced hydrocarbon detector
  • Interior and exterior steel construction
  • High density urethane foam cabinet insulation
  • Hydrocarbon, natural refrigerant
Temperature Controller
  • Audible and visual high and low temperature alarms
  • 2 probes; 1 in air and 1 in sample bottle
  • Remote alarm contacts
Additional Specifications:
  • Product Type: Chromatography Refrigerator
  • Exterior Dimensions:
    • With Casters: 81.75" (L) x 33.25" (W) x 81.75" (H)
    • Without Casters: 81.75" (L) x 33.25" (W) x 78.25" (H)
  • Interior Dimensions: 76" (L) x 24.75" (W) x 52.25" (H)
  • Probe Access Port Size: 0.38"
  • Caster Size: 3.5"
  • Capacity: 69 cu.ft.
  • Electrical Requirements: 115V, 60 Hz, 7.5 Amps, 1/2 HP
  • Operating Temperature Range: 1° C to 10° C
  • Door Lock: Yes
  • Bulb Type: LED
  • Defrost Type: Cycle
  • Display Type: Digital
  • Door Type: Glass /Sliding
  • Refrigerant: R290
  • Number Of Shelves: 12 Adjustable
  • Caster Type: Swivel
  • Number of Casters: 4
  • Certification: ETL Listed
  • Weight: 688 lbs
Unit of Measure (UOM)Each
Dimensions81.75" (access ports closed) 85.75" (access ports open) (W) x 33.25" (D) x 78.25" (no casters) 81.75" (casters) (H)
Laminate ColorWhite
Warranty1 Year parts and labor, plus an additional 4 years compressor parts warranty
Number of Shelves12 adjustable
