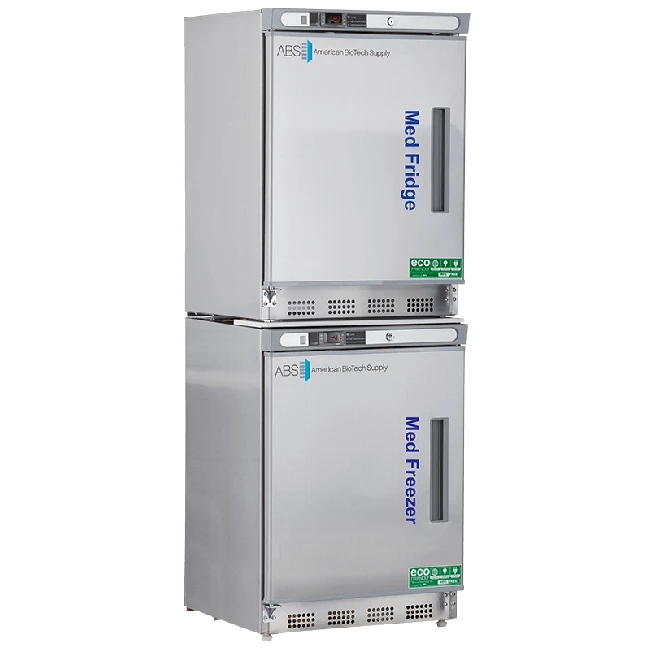

American BioTech Supply 9 Cu. Ft. Left Hinged Stainless Steel Pharmacy Refrigerator and Freezer Combination, PH-ABT-HC-RFC9SS-LH
The American BioTech Supply 9 Cu. Ft. Left Hinged Stainless Steel Pharmacy Refrigerator and Freezer Combination, PH-ABT-HC-RFC9SS-LH features separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY
All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.
This model is designed with a "front-breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
The acceptable temperature ranges for vaccine storage are 36F to 46F (or 2C and 8C) in the refrigerator and -58F and 5F (or -50C and -15C) in freezers.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details:
- 9 Cu. Ft. Capacity (4.5 ref./4.2 freezer).
- 2 adjustable/1 fixed shelves refrigerator/2 fixed shelves freezer with guard rails on back in refrigerator to prevent product from being pushed against back wall.
- Back wall evaporator cover, refrigerator.
- Forced draft circulation refrigerator.
- Vaccine storage power cord warning label.
- Keyed door locks.
- Magnetic door gasket for positive seal.
- Recessed door handles.
- Leveling legs.
- Stacking kit.
- Led interior lights.
- HFC-Free refrigerant (R600a), foam insulation and packaging.
- Pharmacy refrigerator/freezer toolkit and temperature logs.
- *Please note this unit requires 2 outlets.
Temp Controller:
- Microprocessor temperature controller, refrigerator and freezer.
- Digital temperature display, refrigerator and freezer with battery back-up to support temperature monitoring and alarms.
- Adjustable operating temperature range: refrigerator: 36F to 46F (2C to 8C), freezer: 5F to -13F (-15C to -25C).
- Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory.
- F/C switchable, field installable, and visual & audible temp alarm.
- Audible and visual high and low temperature alarms, refrigerator and freezer.
- 2 probes; 1 in air and 1 in sample bottle, in both refrigerator and freezer.
- Remote alarm contacts, refrigerator and freezer.
Discontinued | No |
---|---|
Additional Specifications: | |
Operating Temperature | Refrigerator: 2C to 8C, Freezer: -15C to -25C |
Unit of Measure (UOM) | Each |
Dimensions | 23.75" (W) x 24.50" (D) x 66.75" (H) |
Laminate Color | Stainless Steel |
Warranty | 2 years parts and labor, 3 years compressor parts |
Number of Shelves | 2 adjustable, 1 fixed refrigerator, 2 fixed freezer |
