These premier undercounter refrigerators are designed in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. Units protect pharmaceuticals at optimal temperatures, preventing waste and allowing for peak delivery.

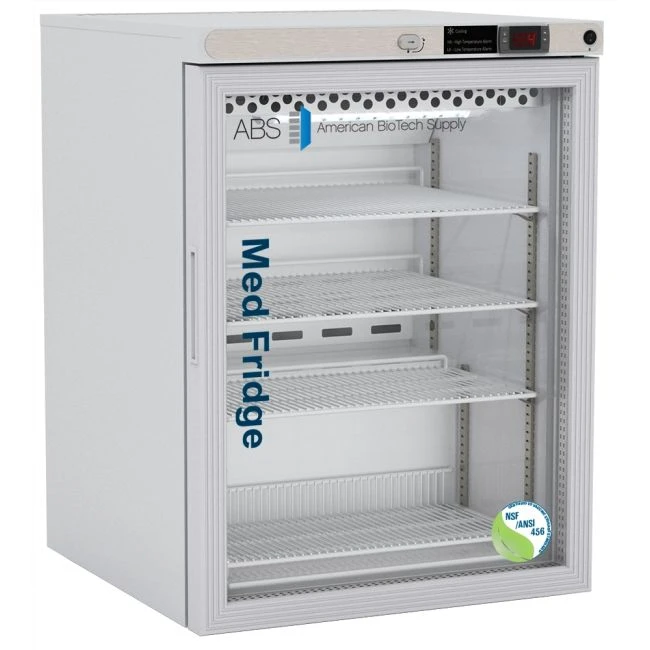

These glass door freestanding refrigerators utilize microprocessor controllers and feature temperature alarms, remote alarm contacts, LED interior lighting, and probe access ports with included probes. Vaccine Storage Refrigerators utilize HFC-free refrigerant for environmental health and energy efficiency.
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator.
Features
Indoor use only. Optimal operating range: +18°C to +26°C (+65°F to +78°F), 70% RH
One swing glass door, self-closing, right hinged, non-reversible, magnetic sealed gasket, keyed lock
Three shelves (two adjustable/one fixed) with guard rail on back
Leveling legs. Note: 4" of clearance on all sides must be maintained for adequate ventilation
Shielded, switched LED lighting, full coverage, balanced spectrum
Forced Air technology, patent pending
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Pyxis, Omnicell and Acudose RX compatible
NEMA 5-15 plug, 8 to 10 ft typical, conforms to UL471 requirements, Vaccine storage power cord warning label
Refrigeration System
Hermetic, high performance
EPA SNAP compliant, R600a, Isobutane
Tube and grid construction, fanless
Plate wall
Cycle optimized, zero energy
Performance
Temperature did not exceed 6.5°C at any probe for all required NSF/ANSI 456 testing scenarios?
All probes recover to under 8°C within 6 min
Controller, Configuration, Alarms and Monitoring
Parametric, microprocessor, LED display with 0.1°C resolution
1°C to 10°C (Setpoint must remain unaltered from the factory setting to remain compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements)
State switching remote alarm contacts
Visual and audible indicators
High / Low temperature, compliant with alarm requirements defined in the NSF/ANSI 456 Standard for Vaccine Storage
20 ml bottle, glass bead thermal media
