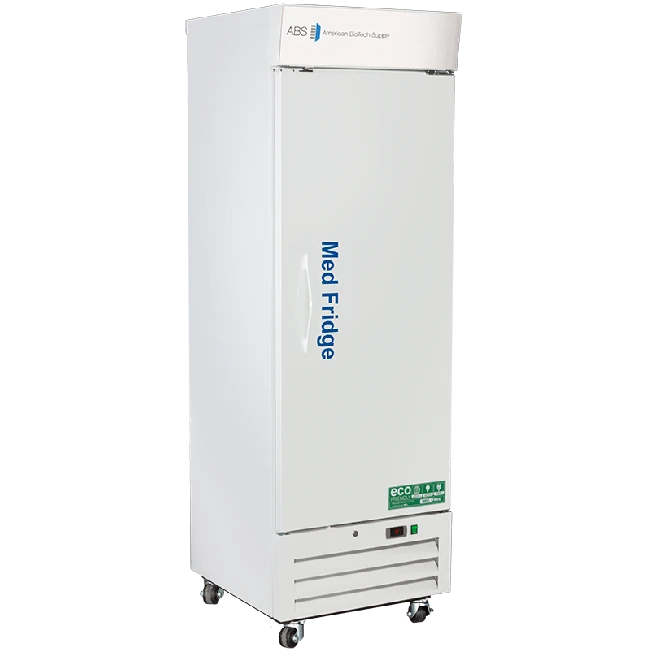

American BioTech Supply Standard Pharmacy Solid Door Refrigerator, 16 Cu. Ft., PH-ABT-HC-S16S

Details

The Pharmacy Standard Solid Door Pharmacy Refrigerators are purpose built for pharmacy and medical applications. The new Standard Solid Door Pharmacy Refrigerators feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies.

A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings. An automatic cycle-defrost design prevents product damaging temperature spikes.

The temperature display and alarm module offers product security with a monitoring and alarm system. Real-time sample simulated temperatures are constantly displayed and supported by audible/visual high and low temperature alarms. Remote alarm dry contacts and an access port are provided to simplify connections to existing facility monitoring systems

The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Features:

  • Two swing glass doors, self-closing, right hinged
  • One GFCI protected duplex electrical outlet
  • One 2" access port with spring-loaded, self-closing gasketed metal cover
  • Heavy duty door handles
  • Probe access port (0.38")
  • Advanced hydrocarbon detector
  • White powder-coated steel exterior and interior
  • High density urethane foam cabinet insulation
  • Three adjustable shelves (adjustable in 0.5" increments)
  • Vaccine storage power cord warning label
  • Forced draft air circulation
  • Heavy duty door handle
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • LED interior lights are safety shielded and switch controlled
  • Swivel casters (3.5")
  • Hydrocarbon, natural refrigerant (R290)
  • Pharmacy refrigerator/freezer toolkit and temperature logs

Temperature Controller:

  • Microprocessor temperature controller
  • Digital temperature display
  • Audible and visual high and low temperature alarms
  • Remote alarm contacts
  • 2 Probes: 1 in air and 1 in sample bottle
  • Adjustable operating temperature range: 36°F to 46°F (2°C to 8°C)
  • Temperature monitor device (tmd) complies with the current cdc guidelines, with 3 years certification of calibration, “buffered” probe in the product simulated solution, min/max memory. F/C switchable, field installable, and visual & audible temp alarm
In stock
SKU
CESS-731974-00004
MPN
PH-ABT-HC-S16S
Features include: One solid swing door, right hinged, three adjustable shelves, keyed door lock and 3.5" swivel casters.
$4,625.20
Specifications
DiscontinuedNo
Additional Specifications:
  • Product Type: Pharmacy Refrigerator
  • Exterior Dimensions:
    • With Casters: 25" (L) x 29.75" (W) x 79" (H)
    • Without Casters: 25" (L) x 29.75" (W) x 75.5" (H)
  • Interior Dimensions: 20" (L) x 19.5" (W) x 49.25" (H)
  • Probe Access Port Size: 0.38"
  • Caster Size: 3.5"
  • Capacity: 16 cu.ft.
  • Electrical Requirements: 115V, 60 Hz, 3 Amps, 1/5 HP
  • Operating Temperature Range: 2° C to 8° C (36° F to 46° F)
  • Door Lock: Yes
  • Door Material: Solid
  • Bulb Type: LED
  • Defrost Type: Automatic
  • Display Type: Digital
  • Door Swing: Right
  • Refrigerant: R-290
  • Number Of Shelves: 3 Adjustable
  • Caster Type: Swivel
  • Number of Casters: 4
  • Certification: ETL Listed
  • Weight: 237 lbs
Unit of Measure (UOM)Each
Dimensions25" (W) x 29.75" (D) x 75.50" (no casters) x 79" (casters) (H)
Laminate ColorWhite
Warranty1 Year parts and labor, plus an additional 4 years compressor parts warranty
Number of Shelves3 adjustable
