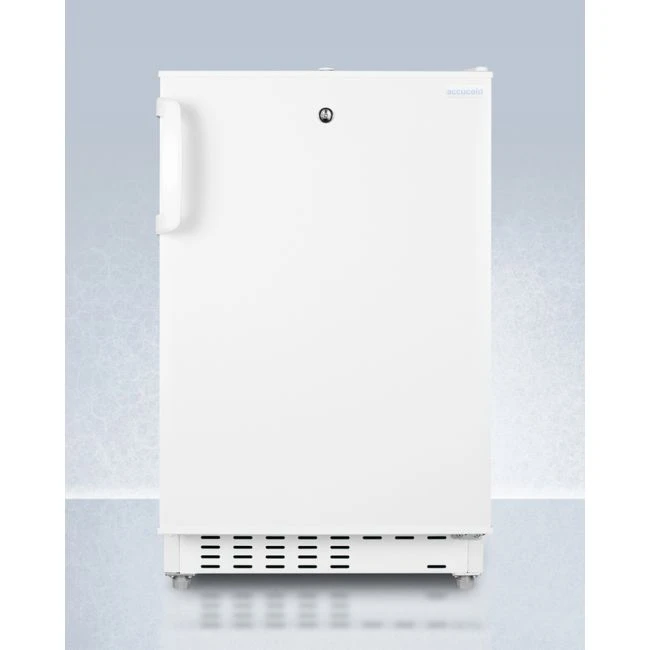

Summit Appliance ADA302RFZ 2.68 Cu.Ft. Built-in Refrigerator-Freezer, ADA Compliant

Details

Accucold offers a wide range of built-in undercounter refrigeration for general purpose storage in healthcare institutions. The ADA302RFZ is a refrigerator-freezer designed for use in settings complying with ADA guidelines.

The ADA302RFZ is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. A factory-installed lock is located towards the top of the door for convenient access and security, perfect for high-traffic environments. The user-reversible door is 3" thick to ensure proper insulation and unit efficiency, with a handle included for added convenience. This unit comes with a right angle cord to allow for added placement options without added depth.

Inside, the ADA302RFZ features an all-white 2.68 cu.ft. interior for easy cleaning, with static manual defrost operation and a dial thermostat. An automatic LED light located toward the front of the unit illuminates the interior for full visibility. Three spill-proof adjustable glass shelves offer flexible storage options and a removable clear crisper drawer holds additional items as needed. The door includes three removable racks. This unit includes a compact freezer compartment with an interior swing door, perfect for ice cube trays, ice packs, or additional supplies in need of freezing.

With its compact size and convenient features, the ADA302RFZ is the perfect unit for doctor's offices, nurses' stations, clinics, and other healthcare settings in need of an easy-fitting ADA compliant refrigerator-freezer.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup.

Features:

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Factory-installed lock

Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

3" thick door

Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space

Door shelves

Three removable door racks for additional storage of bottles and other taller items

Adjustable glass shelves

Three adjustable spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior

Freezer compartment

Interior freezer compartment offers convenient storage of ice cube trays, ice packs, and other healthcare supplies

Manual defrost

Static cooling system for added efficiency

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Slide-out drawer

Removable clear crisper drawer

Reversible door

User-reversible door swing for added flexibility to best accommodate your setting

Sealed back

Space-saving design that offers easier cleanability

Right-angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Interior light

Front-located LED light ensures entire interior is lit when door opens

Fully finished white cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

In stock
SKU
CESS-861944-00001
MPN
ADA302RFZ
Features include: Factory-installed lock, adjustable glass shelves, manual defrost, adjustable thermostat, reversible door
$1,105.96
Specifications
DiscontinuedNo
Additional Specifications:
  • Product Type: Refrigerator-Freezer
  • Dimensions: 19.75" (L) x 22.5" (W) x 31.75" (H)
  • Interior Dimensions: 16.25" (L) x 17" (W) x 17.5" (H)
  • Freezer Interior Dimensions: 16.25" (L) x 11.25" (W) x 5.75" (H)
  • Compressor Step Dimensions: 16.25" (L) x 6" (W) x 6.25" (H)
  • Height to Hinge Cap: 32"
  • Length with Door Open: 20.25"
  • Width with Handle: 24.38"
  • Width with Door at 90°: 40.25"
  • Capacity: 2.68 Cu.Ft.
  • Defrost Type: Manual
  • US Electrical Safety: ETL
  • Canadian Electrical Safety: ETL-C
  • Energy Usage/Year: 259.0kWh/year
  • Amps: 1.1
  • Voltage/Frequency: 115 V AC/60 Hz
  • Door Swing: RHD
  • Reversible: Yes
  • Adjustable Shelves: Yes
  • Number of Crisper: 1
  • Crisper Finish: Transparent
  • Crisper Cover: Glass
  • Interior Light: Yes
  • Refrigerator Shelf Type: Glass
  • Number of Refrigerator Shelves: 3
  • Number of Refrigerator Full Door Shelves: 3
  • Refrigerator Temperature Range: 35-46° F
  • Refrigerator Refrigerant Type: R600a
  • Refrigerator Refrigerant Amount: 0.92 oz.
  • Thermostat Type: Dial
  • Refrigerant Type: R600a
  • Refrigerant Amount: 0.92 oz.
  • High Side PSI: 180.0
  • Low Side PSI: 80.0
  • Level Legs: 2
  • Door Finish: White
  • Cabinet Finish: White
  • Weight: 65 lbs
Unit of Measure (UOM)Each
