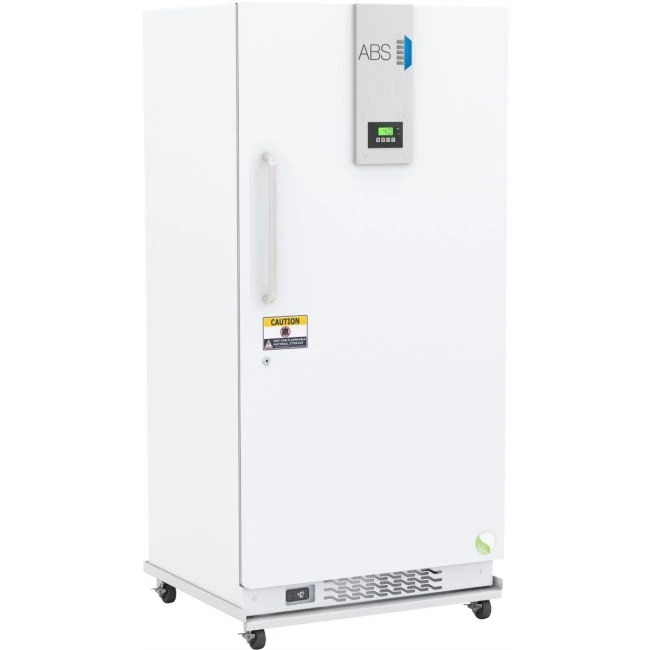

The American BioTech Supply ABT-HC-30R-P 30 cu. ft. Touchpad Laboratory Refrigerator Solid Door with Natural Refrigerants
Designed for reliable and eco-conscious laboratory storage, this 30 cu. ft. touchpad laboratory refrigerator offers versatile performance for lab environments. Its temperature control is powered by microprocessor technology, and maintains tight temperature uniformity with an adjustable operating range of 2°C to 10°C. Enjoy a user-friendly touchpad controller and a robust alarm system including audible and visual temperature alarms, door ajar alarms, sensor error alarms, and power failure alarms—all with battery backups to keep alarms running during outages. Utilizing hydrocarbon refrigerants, this unit meets EPA SNAP compliance, protecting environmental safety. It features a durable white powder-coated steel exterior, with a keyed door lock for added security. This unit offers 30 cubic feet of spacious storage and five adjustable shelves for versatile organization. With a low energy consumption and environmental benefits, the ABT-HC-30R-P is an efficient and next-level solution for diverse laboratory applications.
Quote Information
Commercial Procurement Made Easier
New healthcare facility construction, expansion or remodel - we’ve created a
streamlined approach to healthcare supply chain for our following customers:
Medical facilities (Hospitals, Physician Offices, Long Term Care facilities,
etc.)
GPO members (Vizient, Premier, Intalere, Healthrust, ROi)
Simply search for your desired product(s), and click ‘Chat with Us for GPO Pricing!’
to connect with one of our product specialists. They will note your contact
information and any comments/questions about the item or an overall quote,
and submit it to an account manager. One of our dedicated account managers
will reach out to you with your pricing and to discuss your logistics needs
within 12 hours.
CME Makes It Easy
2 million+ products, from over 2000 manufacturers.
Contract pricing with all the major GPOs, and volume discounts for bulk orders.
We save you time and money by being your most competitive source for all items
in your PO/quote, and we’ll even locate those products we don’t carry
at the best price.
Streamlined, on-time delivery with turn-key white glove service, scheduled for
when its best for you.
Quote to Delivery. One Team. One Partner. CME Makes It Easy.
One solid swing, right hinged; stainless steel door handle; magnetic door gasket
Shelves
Five adjustable
Mounting and Installation
Caster platform
Airflow Management
Forced draft circulation
External probe access
3/4" probe access port on rear wall
Insulation
EPA compliant high density urethane foam
Exterior materials
Powder coated steel
Access Control
Keyed door lock
General Warranty
Two (2) year parts and labor warranty
Compressor Warranty
Five (5) year compressor parts warranty
Product Weight (Lbs)
350
Shipping Weight (Lbs)
380
Rated Amperage
3.1 Amps
Power Plug/Power Cord
NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement
110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency and Certification
UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2
Uniformity (Cabinet air)
+/- 1.6°C
Stability (Cabinet air)
+/- 1.0°C
Maximum temperature variation (Cabinet air)
3.6 °C Total
Energy Consumption (KWh/day)
< 1.7 KWh/day
Average Heat Rejection (BTU/hr)
520 BTU/hr
Pull down time to nominal operating temp
<35 min (empty)
Compressor
Hermetic, variable speed
Refrigerant
EPA SNAP compliant R600a Isobutane
Condenser
Static - exterior walls of cabinet
Evaporator
Fin and tube design, high efficiency fan
Defrost
Off-cycle defrost, no heat added
Controller technology
Microprocessor temperature controller with variable frequency compressor control
Battery Backup
Optional accessory
Temperature Setpoint Range Notes
Minimum temperature limited to avoid freezing
Adjustable Temperature Range
2°C to 10°C
External alarm connection
Remote alarm contacts
Alarms
Audible and visual high/low-temperature alarms, Door ajar alarm, Remote alarm contacts
Display Probe
Product simulator bottle with glass bead media
Disclaimers
Refrigerator requires a minimum 4” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
