Burton Medical A203W AIM 200 OR Wall Mount Surgical Light

Details

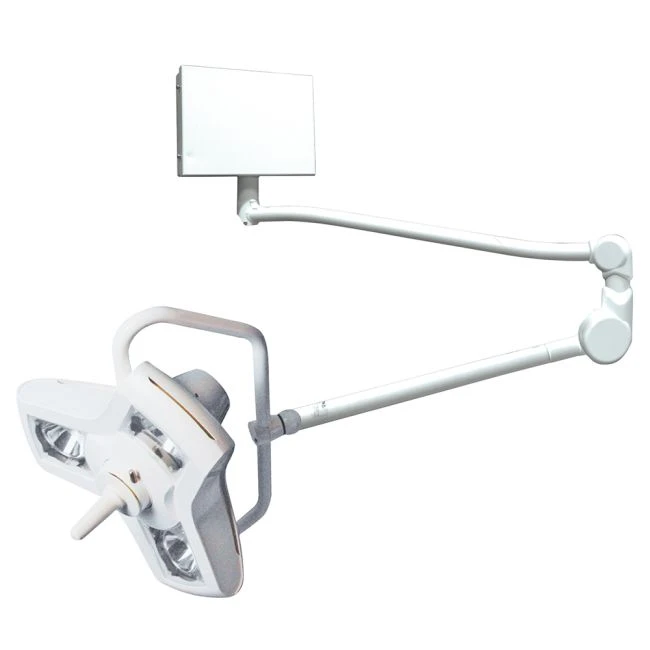

Burton Medical A203W AIM 200 OR Wall Mount Surgical Light

AIM-200 OR provides versatility, amazing illumination, and ease of use. The rotating center handle makes adjusting the light size and pattern to fit the working area quick and convenient. This light’s superior arm mechanism is easy to position and will not drift. The AIM-200 OR is wall mount which makes it a practical choice for hospitals, ambulatory surgery centers and animal health offices.

Larger and Adjustable Light Pattern:

The multiple reflectors of the AIM-200 OR can be tilted by rotating the sterilizable light handle to adjust the size and pattern of the light to the working area.

Light Pattern Free of Cast Shadows:
  • The AIM-200 OR has a unique Y-shaped design, which facilitates placement of the lighthead around the practitioner’s head minimizing the obstruction of light into the surgical field.
  • Depth of Field/Beam Diameter:
    • A - Depth of Field: 47
    • B - Beam Diameter, D10: 10
    Features:
    • 90,000 lux (8361 fc) at 1 meter
    • 3700 K color temperature
    • CRI (Color Rendering Index) of 96
    • Larger and adjustable light pattern
    • Unlimited rotation and maximum reach of 63
    • Adjustable focusing by rotating center handle
    Certifications/Approvals:
    • UL60601-1 / IEC 60601-1 / IEC 60601-1-2 / IEC 60601-2-41; CAN/CSA C22.2 601-1 M90 certified
    • CE marked
    In stock
    SKU
    CESS-753703-00001
    MPN
    A203W
    Features include: 3700 K color temperature, Unlimited rotation, Larger and adjustable light pattern, Adjustable focusing by rotating center handle
    $10,619.67
    Specifications
    DiscontinuedNo
    Additional Specifications:
    • Product Type: Surgical Light
    • Diameter of Lighthead: 20"
    • Light Field Diameter: 10" - 12"
    • Depth of Illumination: 47"
    • Bulb Type: Halogen
    • Bulb Life: 1,400- Hours
    • Pin: Bi-Pin
    • Color Temperature: 3700 K
    • Color Rendering Index: 96
    • Number of Bulbs: 3
    • Illuminance: 90,000 Lux at 1 meter
    • Mounting Type: Wall Mount
    • Wattage: 105 W
    • Voltage: 230/240 V
    • Focusing: Adjustable by rotating center handle
    • Seismic Calculations Available: Yes
    Unit of Measure (UOM)Each
