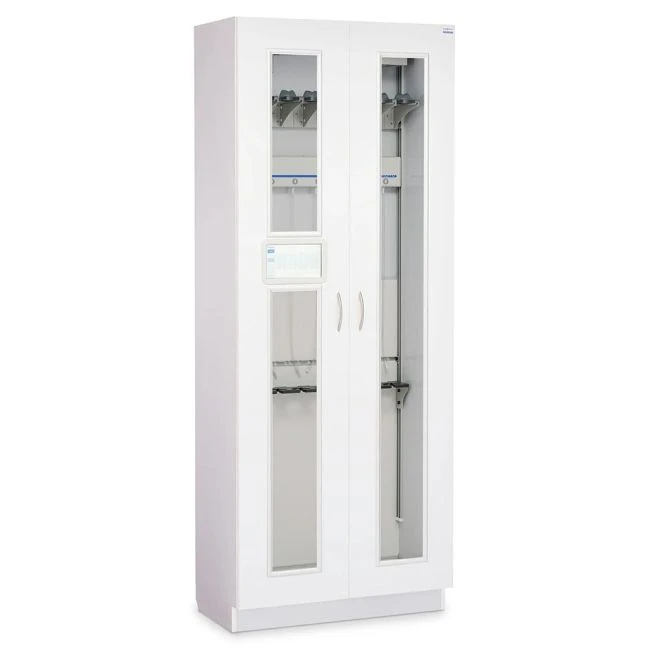

The 19.25"-deep scope drying and tracking cabinet comes in 3 widths and 3 heights and with solid-front or tempered glass doors. It includes a scope drying and tracking unit, fan ventilation unit, humidity and temperature sensor, filter and tubes, and 10" touchscreen. The easy-to-operate system continuously filters air into internal scope channels to efficiently and thoroughly dry scopes and features timed drying and venting cycles and scope tracking management. HEPA filtered air removes 99.9% of particles less than 0.1µm. The drying system works with all major endoscope brands. Cabinet has a 4"-high toe kick. Streamline scope drying with the security and automation option to add a locking system and barcode scanning process.
Compressor air output:
The drying system has a maximum PSI of 4 with an average PSI between 2.5 and 3. The flowrate is approximately 269L per a 10-minute drying cycle. Air flowrate will vary depending on the size of the endoscope.
up to 45 LPM
Compressor decibels:
62 dB, with doors closed
Electrical requirements for drying and tracking unit:
120 VAC, 60Hz, 15-amp standard duplex receptacle
Includes a hospital-grade, UL-approved, 125V, 10-amp, 10-foot-long power cord with Y-splitter to power both the drying and tracking unit and the fan unit
Electrical requirements for cabinet fan ventilation unit (SFVU):
Voltage Rating: 115VAC
Watts: 13.0W
Amps: 0.19A
Temperature / Humidity Sensor:
Normal range: 72?F-78?F (22?C-26?C)
Maximum relative humidity level: 60%; levels above 60% are out of range
Cabinet shell:
AireCore: Aluminum composite with Glacier White finish or specified Wilsonart, Formica, or Pionite standard laminate
Glass-front doors:
AireCore: Aluminum composite with Glacier White finish or specified Wilsonart, Formica, or Pionite standard laminate with tempered glass and clear anodized aluminum trim
