Details

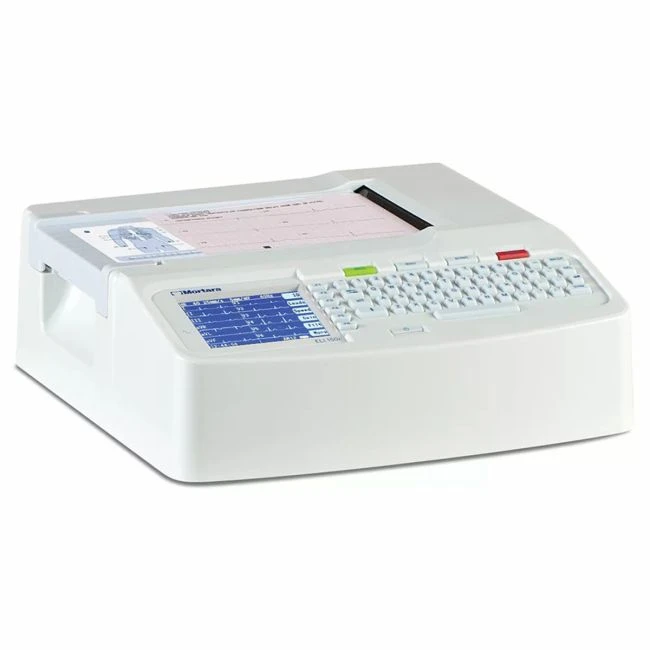

The compact and lightweight ELI 150c Electrocardiograph provides comprehensive functionality in an ultra-portable device.
Its widely recognized Mortara Veritas resting ECG interpretation algorithm uses gender-specific and adult and pediatric criteria to provide a silent second opinion for resting ECG interpretation. The ELI 150c resting ECG offers a choice of either the innovative WAM wireless acquisition module or the AM12 acquisition module. Both include replaceable lead wires, lead fail indicator and remote control with buttons for ECG acquisition and rhythm printing.
Features:
- High-res color display provides 12-lead ECG preview and post-acquisition review
- Captures best 10 seconds of ECG data from memory, reducing need for repeat ECGs
- Buttons for ECG acquisition, rhythm printing & ECG transmission/order retrieval
ELI150c 12-Lead Multi-Channel Electrocardiograph with AM12 Wired Acquisition Module:
Color LCD display, AC or battery operation, with AM12 Wired Acquisition Module (includes 1 starter pack paper - Z-fold, 4.25 in. x 5.5 in.), current software, US/Canada power cord, AHA 10 wire, 12-lead lead set with banana plugs, Adult and Pediatric Interpretation, ECG clip adapters (set of 10) and tab electrodes (pouch of 100), Ethernet LAN + USBD, Standard storage (up to 40 ECGs), DICOM (Bidirectional communication with third party data management system)
ELI150c 12-Lead Multi-Channel Electrocardiograph with WAM Wireless Acquisition Module:
Color LCD display, AC or battery operation, with WAM Wireless Acquisition Module (includes 1 starter pack paper - Z-fold, 4.25 in. x 5.5 in.), current software, US/Canada power cord, AHA 10 wire, 12-lead lead set with banana plugs, Adult and Pediatric Interpretation, ECG clip adapters (set of 10) and tab electrodes (pouch of 100), Ethernet LAN + USBD, Standard storage (up to 40 ECGs), DICOM (Bidirectional communication with third party data management system).
Simple:
- Portable, compact, and lightweight with comprehensive functionality
- Choice of Wireless (WAM) or traditional (AM12) ECG acquisition modules with remote ECG acquisition and rhythm print capability
- Best 10 technology automatically selects and displays the 10 seconds of data with the least amount of noise, reducing clinical review time and repeat ECGs
- Full Keyboard with one-touch operation for ECG acquisition and ECG transmission / order retrieval
- Veritas Resting ECG Interpretation with gender-specific and adult and pediatric criteria to provide a silent second opinion
- Option to support up to 3 clinical research protocols simultaneously
Secure:
- Helps achieve FDA Title 21 CFR Part 11 compliance
- Data encryption on disk (256-bit AES Encryption)
- User and role-based authentication and permissions
- Audit trail logging and export
Connected:
Bidirectional communication via USB, internal modem, LAN, wireless LAN, or GPRS enables connectivity to EHR, PACS, and electronic data capture (EDC) systems used in clinical research.
12-Lead Resting ECG Features:
- Instrument type: 12-lead electrocardiograph
- Input channels: Simultaneous acquisition of all 12 leads
- Standard leads Acquired: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6
- Waveform display: Backlit, 0.25 VGA color LCD (320 x 240); 3, 4+4, or 6+6 lead presentation
- Input impedance, Input dynamic range, Electrode offset tolerance, Common mode rejection: Meets or exceeds the requirements of ANSI/AAMI EC11
- Patient leakage current, Chassis leakage current: Meets or exceeds the requirements of ANSI/AAMI ES1
- Digital sampling rate: 40,000 s/sec/channel used for pacemaker spike detection, 1000 s/sec/channel used for recording and analysis
- Optional functions: Veritas resting ECG interpretation algorithm with age and gender-specific criteria, connectivity with bidirectional communication
- Paper: Perforated double Z-fold thermal paper; 108 mm (4") wide, 200 sheets
- Thermal printer: Computer-controlled dot array; 8 dots/mm
- Thermal printer speeds: 5, 10, 25, or 50 mm/s
- Gain settings: 5, 10, or 20 mm/mV
- Report print formats: Standard or Cabrera; 3, 3+1, 3+3, or 6 channel
- Rhythm print formats: 3 or 6 channel with configurable lead groups
- Keyboard: Elastomer keyboard with complete alphanumeric keys, soft-key menu and dedicated function keys
- Frequency response: 0.05 to 300 Hz
- Filters: High-performance baseline filter; AC interference filter 50/60 Hz; low-pass filters 40 Hz, 150 Hz, or 300 Hz
- A/D Conversion: 20 bits (1.17 microvolt LSB)
- Device classification: Class I, Type CF defibrillation-proof applied parts
- ECG storage: Internal storage up to 40 ECGs; optional expanded up to 200 ECGs
- Power requirements: Universal AC power supply (100-240 VAC at 50/60 Hz) 110 VA; internal rechargeable battery
Wireless Acquisition Module (WAM):
Use the Wireless Acquisition Module (WAM) to free your care area from unnecessary wires and make your patients more comfortable at the same time.
Convenient Patient Access:
Equivalent in size and weight to a conventional wired patient cable, the Wireless Acquisition Module (WAM) provides freedom of movement for the clinician while acquiring electrocardiograms and performing cardiac stress testing exams.
Easy ECG Acquisition at the Electrocardiograph:
ECG acquisition can be initiated at the WAM module or the electrocardiograph. The module offers On/Off, 12-lead ECG acquisition and rhythm printing at the bedside with the simple press of a button. Visual and audible feedback is provided at the WAM module.
Small Spaces Are No Obstacle:
The need to maneuver the electrocardiograph through the doorway to the patient's bedside is eliminated; this is particularly advantageous in critical situations or when the patient is in isolation.
Point-to-Point Connection:
Dedicated and secure communication links the WAM module to a single electrocardiograph or cardiac stress system.
Diagnostic-Quality ECG:
Baxter wireless technology features full diagnostic-quality ECG with a high-fidelity acquisition sampling rate of 40,000 samples per second per channel - a benefit for accurate pacemaker detection. Elimination of the cable reduces a source of artifact resulting in high-quality ECG tracings.
Efficient Power Management:
Under typical usage, the battery-operated WAM module can acquire 250 resting ECGs. Advanced power management automatically turns it off.
12-Lead Wireless Acquisition Module for Resting ECG Features:
- Instrument type: 12-lead wireless acquisition module for resting ECG
- Input channels:12-lead signal acquisition and transmission
- ECG leads transmitted: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5 and V6
- Module transmission protocol: Bidirectional and frequency hopping; beacon and response method links a single acquisition module to a single electrocardiograph or cardiac stress system
- Frequency range: 2400.96 MHz to 2482.56 MHz
- Module and receiver distance: Approximately 10 feet (3 meters)
- Lead Set: RA, LA, RL, LL, V1, V2, V3, V4, V5 and V6 (R, L, N, F, C1, C2, C3, C4, C5 and C6) with detachable lead wires
- Sampling rate: 40,000 samples/second/channel acquisition; 1,000 samples/second/channel transmitted for analysis
- Resolution: 1.875 microvolt LSB
- User interface: Three-button operation: On/Off, 12-lead ECG acquisition and rhythm strip acquisition
- Defibrillator protection LED indication of power status, operating mode, lead fault and remaining battery charge
- Device classification: Type CF, battery operated
