Details

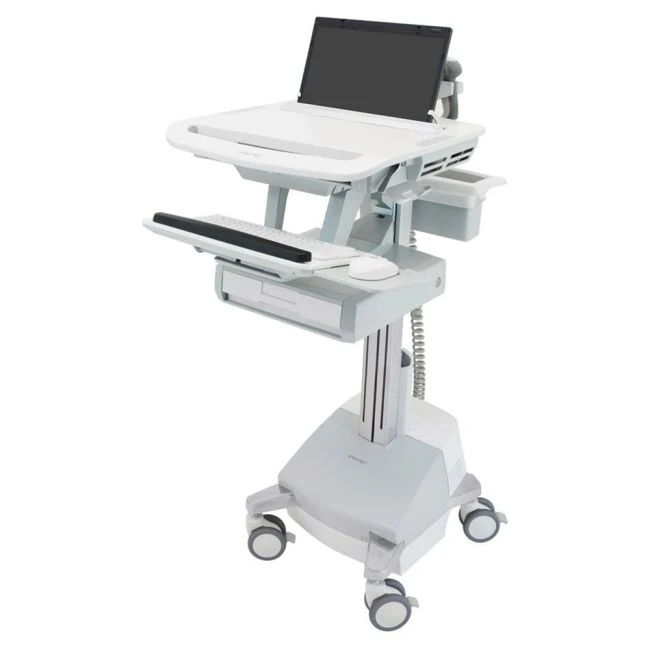

Stay productive and on the go with our certified power system. This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment and an adjustable back-tilt keyboard tray. Its auto-locking drawer system enables simple and efficient management of non-controlled medication with variable-length PIN access for users.

Weight Capacity: Total maximum load on height-adjustment assembly = 20 lbs . This is the sum of the following components: worksurface ? 5 lbs; keyboard tray ? 3 lbs; and laptop compartment ? 10 lbs; large drawer ? 2 lbs.

Cart may be fitted with up to five rows of standard-height drawers. Vertical adjustment range is affected by the number of drawer rows: 0-2 rows = 20" ; 3 rows = 16"; 4 rows = 12" ; 5 rows = 8". Cart may be fitted with up to three rows of tall drawers.

StyleView can leverage cloud-based eKinnex technology to monitor battery life and other key metrics in real time. Maximize your medical cart investment and get the most uptime from your fleet.

Auto-locking drawer system (ADS), primary single drawer, drawer dividers, worksurface, CPU lock, secure laptop compartment, four-port USB hub, scanner holder bracket, mouse holder, wrist rest, back-tilt keyboard tray, keyboard lights, left/right mouse tray, rear handle, storage basket, cable storage, four casters (lockable, 1 tracking function), two-battery 66 Ah power system, coiled cord, integrated AC outlets, power system user interface.

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry-avoid repetitive-stress injuries while increasing comfort and productivity
• Designed for users 5'0" to 6'1" tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch

• For patient and caregiver safety the entire power system and the full cart are certified to UL/EN/IEC 60601-1 and CAN/CSA-C22.2 No. 60601-1:08. Also complies with EMI limits of FCC Part 15 Class A
• Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
• Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
• Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
• One-piece worksurface with no seams; easy-to-clean design promotes infection control
• Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty
• Locking casters
• CPU lock provided inside the storage compartment for additional security
• Designed to meet guidelines established by the American National Standards Institute for computer use

• For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1 and CAN/CSA-C22.2 No. 60601-1:08. Also complies with EMI limits of FCC Part 15 Class A
• Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
• Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
• Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
• One-piece worksurface with no seams; easy-to-clean design promotes infection control
• Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty
• Locking casters
• CPU lock provided inside the storage compartment for additional security
• Designed to meet guidelines established by the American National Standards Institute for computer use

• Open-architecture design accommodates most laptops?even widescreen with up to 17.3" diagonal size
• 66 Ah Power System with two 33 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics?easing future hardware deployments and upgrades
• It is recommended that a discharge test be conducted when cart is first purchased to determine runtime with computer equipment configured on the cart. A monthly discharge test should be conducted to determine runtime loss. If runtime is less than 50% of original, batteries must be changed

Features:

• Effortlessly maneuver the cart to the point of need?StyleView quickly responds to caregivers touch and enables nurses to focus on their patients
• Truly ergonomic design accommodates the largest range of caregivers; designed for sitting or standing with single-motion fluid adjustment?helps promote caregiver wellness and productivity
• StyleView's small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
• Open-architecture design accommodates most laptops?even widescreen with up to 17.3" diagonal size?easing future hardware deployments and upgrades
• Drawer system supports "Pharmacy mode," allowing all drawers to be unlocked simultaneously to facilitate efficient stocking of medication
• Extra rows of drawers may be added?up to a maximum of 5 rows
• For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1. Complies with EMI limits of FCC Part 15 Class A
• Dependable fifth-generation power system with easy to replace batteries
• Passes Ergotron's 10,000-cycle motion test, which ensures years of trouble-free sit-to-stand height adjustment
