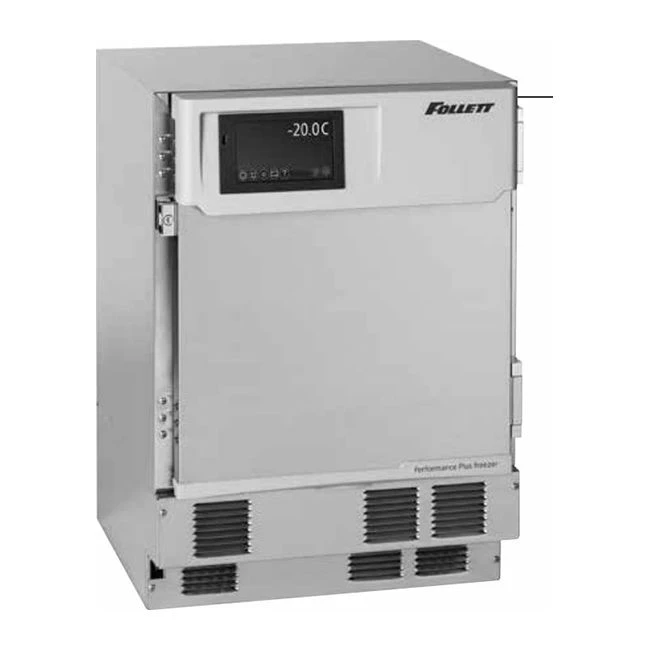

Follett FZR5P-TR-00-00 4.5 Cu Ft Undercounter Freezer, Right Hinged Door

Details

Features:

  • Ventilation clearance 0.0" for top, side and back clearance
  • Door swing 24" from front of cabinet, 180° from closed
  • Door solid, foamed stainless
  • 115 V/60/1 electrical 7.1 run load amps, NEMA 5-15P 90° hospital-grade plug. PVC, SJT, 16GA, 7' Lg cord
  • Controller security choose "on" or "off" - 4 digit password to prevent interface setting/selection changes
  • High and low product temperature alarm audible and visual, user programmable setpoints in C or F
  • Probe error alarm audible and visual - product temperature probes, refrigeration and defrost
  • Min/max temperature log shows highest and lowest product temperature since last reset occurred
  • Remote contacts NO/NC standard, located on back
Superior temperature performance
  • Custom-designed microprocessor temperature controller air-cooled refrigeration system with heavy duty 0.25" horsepower compressor
  • Environmentally friendly, non-CFC R404a refrigerant
  • Programmed automatic defrost every 6 hours
  • Cabinet-wide temperature remains within ±1 C (1.8 F), even with frequent door openings
Convenience and security
  • Fits below 36" standard countertops without casters
  • Refrigeration system settings accessed through door-mounted controls
  • 7" LCD capacitive touchscreen digital temperature display available in user-programmable C or F with choice of product or air temperature
  • Integral event and data logging with easy downloading via convenient USB port
  • User-programmable audible and visual high/low alarms
  • Mechanical lock - mounted on side of door
  • Lockable controller so setpoints cannot be inadvertently changed
  • Dry (NO and NC) contacts allow connection to remote alarm systems
  • Flexible internal storage configuration (drawers and shelves interchangeable)
  • Lighted cabinet
  • Agion antimicrobial and UV product protection added to molded plastic facade1
Durability and serviceability
  • Stainless steel construction on exterior and interior
  • Two epoxy-coated wire shelves standard
  • Back wall evaporator and front ventilation (no top, back or side clearance required)
  • Heavy-duty edge-mount self-closing hinges
  • Solid stainless steel door
  • Right-hinged door with integral handle and magnetic gasket door closure provides ease-of-use
Options and accessories
  • Keypad and electronic lock
  • Extra shelf (item 01059484)
  • One drawer kit (item 01053644)
  • Two drawer kit (item# 01067750)
  • Temperature surveillance module (chart recorder) (item 00168674)
  • Universal automated medication dispensing system bracket (item 01059096)
  • Glycerine (16 oz) (item 00959296)
  • Stacking kit (item 01054006)
  • Temperature alarm (item 00112185)
  • 17" pedestal kit (item 01059120)
  • Extra key (item 01059112)
  • Casters (set of 4) (item 01053636)
  • Seismic bracket kit (item 01059104)
In stock
SKU
CESS-861055-00001
MPN
FZR5P-TR-00-00
Features include: 7" LCD capacitive touchscreen digital temperature display, user-programmable audible and visual high/low alarms, mechanical lock, lighted cabinet
$10,194.24
Specifications
DiscontinuedNo
Additional Specifications:
  • Product Type: Freezer
  • Length: 23.75"
  • Width Cabinet: 25.62"
  • Width with Façade 27"
  • Height: 34"
  • Height with Casters: 36.50"
  • Interior Dimensions: 19.75" (L) x 18.32" (W) x 21.54" (H)
  • Door Dimensions: 21.50" (L) x 1.63" (W) x 22.51" (H)
  • Nominal Capacity: 4.5 Cu Ft
  • Door Lock: Cylinder Lock
  • Door Handle: Molded into Front Facade
  • Door Hinged: Right
  • Gasket: Magnetic
  • Temperature Display: 7" Capacitive Touchscreen
  • 3rd Party Probe Access: Rear Access Port
  • Factory Preset: -27.8 C
  • Date and Time: Programmable
  • Simulation Bottle Capacity: 60 ml
  • Programmable Operating Range -37.2 to -17.8 C (-35 to 0 F)
  • Alarm Mute: User Selectable
  • Alarm Volume: 0 -10 Adjustable
  • Refrigerant and Charge: R404a Refrigerant, 10 oz
  • Energy Consumption: 5.8 kWh/day
  • Nominal Heat Rejection: 825 BTU/hr (242 W)
  • Max Heat Rejection: 2175 BTU/hr (637 W)
Unit of Measure (UOM)Each
