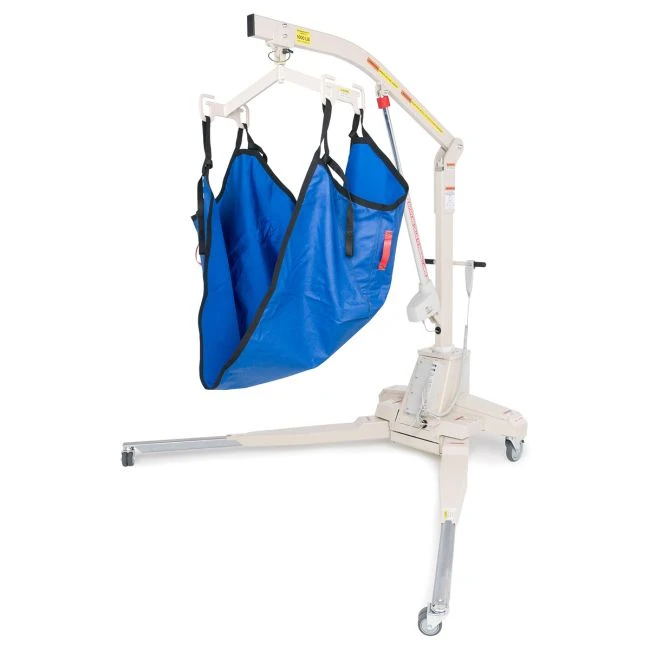

Graham Field PL800 Maxi Care Bariatric 61.69"L x 85"W Patient Lift

Details

The maxi care bariatric patient lift provides safety to both the patient and the caregiver. The hand pendant controls base leg extension and widening for stability. Lifting, transferring left or right, and lowering the patient are also hand pendant controlled. The actuator that controls raising and lowering features a manual release to lower the patient in the event of power loss. Each model is available with optional scales.

When transferring a bariatric patient, safety is key for both the patient and caregiver. The gendron patient lift is designed to offer a safer and robust solution to patient transfers.

Features:

  • Heavy-gauge steel construction
  • Four-point spreader bar with rotation tilts to enhance comfort and safety
  • The hand pendant controls all functions of the lift including extending and retracting the legs and the opening and closing of the base
  • Lifting and lowering along with the left and right rotational movement are also hand pendant operated
  • Lower base height maximizes stability and fits under beds
  • 24v dc motor allows quiet smooth operation
  • Easy access emergency stop button
  • Emergency power off button available if needed in event of a power loss
  • Powder-coated finish
  • Optional digital scale available
  • 800 lbs weight capacities
In stock
SKU
CESS-862238-00001
MPN
PL800
Features include: Heavy-gauge steel construction, lower base height maximizes stability and fits under beds, easy access emergency stop button.
$11,705.45
Specifications
DiscontinuedNo
Additional Specifications:
  • Product Type: Patient Lift
  • Overall Dimensions: 61.69" (L) x 85" (W)
  • Minimum Base Length (extension legs open): 53"
  • Maximum Base Length (extension legs open): 85"
  • Minimum Spreader Bar Height: 43.31"
  • Maximum Spreader Bar Height: 78.56"
  • Floor Clearance: 4.75"
  • UOM: 1/Each
  • Product Weight: 354 lbs
  • Weight Capacity: 800 lbs
  • Finish: Powder-Coated
Unit of Measure (UOM)Each
