Details

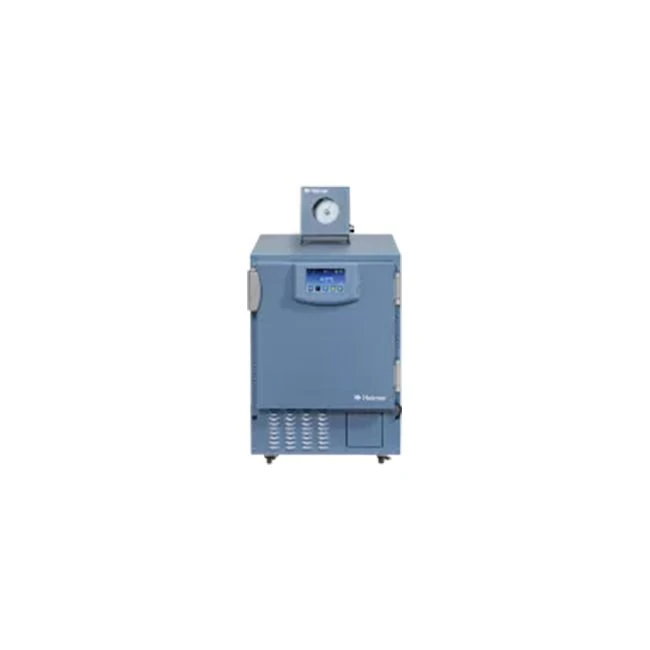

GX Solutions and the i.C3 Information Center set i.Series models apart by providing a professional medical-grade refrigerator with advanced monitoring and control. GX Solutions are designed for the unique needs of critical healthcare applications such as the storage of plasma and blood components. Professional medical-grade refrigerators deliver optimized control in three important areas: temperature, noise and energy management. Powered by OptiCool technology, GX Solutions provide improved performance and user experience through energy efficiency, low noise levels, and stable storage environments to safeguard your valuable blood products. The powerful i.C3 Information Center is exclusive to i.Series models and provides constant temperature monitoring, multiple information logs, and security features. The GX solutions are the first professional medical-grade refrigerator for blood banks and blood centers.
Designed to safely store blood and blood components within an exceptional temperature-controlled environment.
- OptiCool technology pairs a variable capacity compressor (VCC) and natural hydrocarbon refrigerants to ensure optimal temperature uniformity, recovery and stability, efficiently manage energy consumption and meet evolving environmental regulations
- Optimized temperature uniformity, recovery and stability create best environment for blood storage
- Reduced energy consumption (50-65% more efficient than traditional technology)
- U.S. Environmental Protection Agency SNAP (Significant New Alternatives Policy) compliant refrigerants
- Quiet operation (42 dB) creates fewer distractions and better working environment
- i.C3 touchscreen user interface is password protected and provides advanced monitoring and information to ensure protection of stored product
- Cabinet built with high-quality construction meets or exceeds performance standards required by the medical and scientific industries
- Solid door and chart recorder standard
- Adjustable, liquid-tight drawers for containment of spills
- Rear access port
- Fits under standard 34" high ADA-compliant countertop
- Energy Star certified
Facility Supply Rating
Branch circuit with earth ground, meeting plug/cord ratings as well as local electrical safety codes and requirements
- 110-120V AC: 15 A (minimum)
- 220-240V AC: 10 A (minimum)
Power Plug/Power Cord Length
NEMA 5-15 hospital-grade | 115V 60Hz, 8 to 10 ft (2.4-3.0m) Inquire about additional plug/cord options
Certifications/Regulatory Approvals - QPS (Certified to UL and CSA Standards) IEC/UL61010-2-011 (Dec 2016), CE 2797, RoHS
Refrigeration
- Refrigeration System: VCC compressor-based, forced-air hydrocarbon
- Compressor: Hermetic, variable speed (VCC). Rated speed range: 1300-4000 rpm
- Condenser Type: Air-cooled fin and tube, sealed
- Expansion Device: Cap tube
- Evaporator Type: Direct expansion with forced-air fin and tube
- Defrost Method: Automatic
- Refrigerant: R600a, Isobutane, EPA SNAP compliant
Controller / Configuration Settings
- User Interface: i.C3 color touchscreen, door-mounted, 7", ?C or ?F
- Power Switch: On/Off
- Controller Type: Microprocessor with touchscreen input & display
- Security: Lockable door, password protected settings, PIN access via optional access control
- Control Sensor: RTD, stainless steel
- Communication Ports: USB, Remote alarm contacts, RJ45 (Ethernet), API available for Ethernet connectivity development
- Power Failure Alarm: Yes
- High/Low Alarms - Tests: Yes, fully adjustable, automatic (Peltier) testing
- Door Ajar Alarm: Yes, fully adjustable
- Condenser Temperature Alarm: Yes, fully adjustable
- Min/Max Temperature: Yes, display and reset
- Download: Yes, via USB. CSV and PDF
- Event Log: Yes, all alarms, door openings, download via USB
- Temperature Log: Yes, download via USB
- Access Log: Yes, with optional access control, download via USB
- Interactive Temperature Graph: Yes
- Chart Recorder: Yes, standalone, 4" diameter, inkless pressure-sensitive charts, backup battery
- Temperature Monitoring Ballast: Yes, 4 oz bottle with screw cap, solid ballast optional
- Battery Back-up: Yes, 20 hr display and alarm back-up for i.C3 touchscreen | Rechargeable 12V, lead acid
Construction
- Forced-air circulation maintains chamber temperature uniformity and provides quick recovery after door openings
- No defrost cycle required to maintain constant temperature
- Undercounter solid, self-closing door maintains optimal storage conditions and is field-reversible
- Upright models include a dual-pane glass door(s) with ADA compliant full-length handle
- Solid, stainless steel pull out drawers with liquid-tight construction for containment of spills; fully extendable
- Chart recorder with 7-day circular charts (inkless)
- Bacteria-resistant powder coated interior and exterior
- Swivel, locking casters (upright) / Leveling feet (U/C)
- Recessed floor contains spills for easy clean up and maintain integrity of other stored products
- Key lock, settings security and optional access control
Featured Options & Accessories
Integrated Electromagnetic Access Control - i.Series
Access Control provides data capture of unit access and documents how and when access occurred (factory installed). Entry via PIN. Up to 100 user IDs. Access Control log can be downloaded.
Solid Ballast Simulator Kit for GX Model Refrigerators
Solid Ballast Simulator is a maintenance-free thermal buffering solution designed to replace glycerin bottles. Uses existing wall or ceiling-mounted bracket.
Glass Door (Undercounter)
Dual-pane glass door, field-reversible.
Interior LED Light
Energy-efficient LED lighting illuminates interior and includes on/off switch.
Swivel, Locking Casters, Undercounter
2" casters for field installation (undercounter refrigerators and freezers)
Ventilated Shelf (5/13 Cu. Ft)
Full Shelf, Ventilated, White (with hardware). For field installation (for 5 and 13 cu ft refrigerators and freezers, GX models)
Ventilated Drawers (5 Cu. Ft.)
Ventilated drawers are fully extendable and powder-coated (for Undercounter Refrigerators, GX models). Hardware is included.
Solid Stainless Steel Drawers (5 Cu.Ft.)
Liquid-tight drawers contain spills and are fully extendable (for i.Series Undercounter Refrigerators, GX models).
Locking Drawers
Stainless-Steel drawers with ventilated cover and key lock offer secure storage for medications, vaccines, blood products, samples and more.
