Details

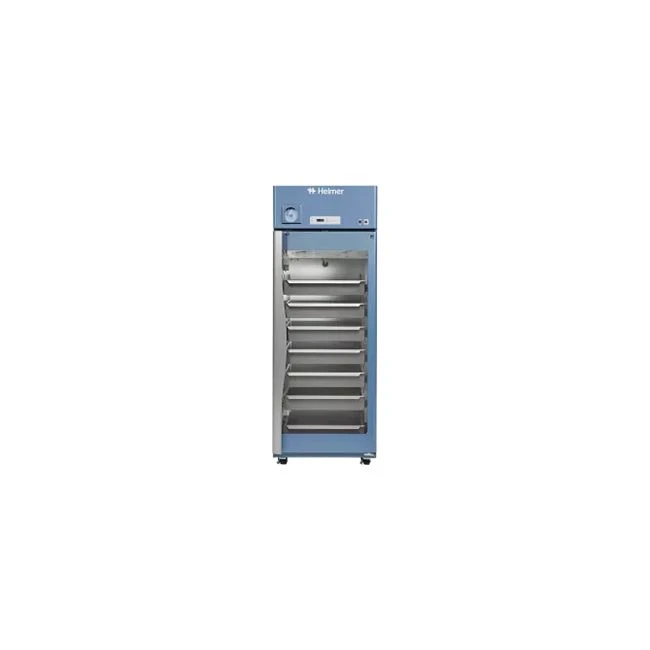

The HBR120-GX Blood Bank Refrigerator is a single door, upright GX Solutions model that safely stores blood products at 4?C. Essential alarm functionality provides continuous monitoring. Innovative OptiCool technology offers energy savings, quiet operation, and low heat output, in addition to the excellent temperature uniformity and recovery that are critical for blood storage.
Features:
- OptiCool technology pairs a variable capacity compressor (VCC) and natural hydrocarbon refrigerants to ensure optimal temperature uniformity, recovery and stability, efficiently manage energy consumption and meet evolving environmental regulations
- Optimized temperature uniformity, recovery and stability create best environment for blood storage
- Reduced energy consumption (50-65% more efficient than traditional technology)
- U.S. Environmental Protection Agency SNAP (Significant New Alternatives Policy) compliant refrigerants
- Quiet operation (47 dB) creates fewer distractions and better working environment
- Digital microprocessor temperature controller with built-in alarms, includes min/max display and reset
- Cabinet built with high-quality construction meets or exceeds performance standards required by the medical and scientific industries
- Adjustable, liquid-tight drawers for containment of spills
- Rear access port
- Energy Star certified
- Insulation: Sustainable, US EPA and SNAP approved foam
- Access Port: Top Access Port- for external monitoring probe(s) (0.75" diameter)
- Interior Storage: 7 drawers, liquid-tight, stainless steel, adjustable,
- Casters: Yes, swivel-locking
- Integrated Access Control: Optional - electromagnetic-lock with PIN entry via keypad
- Clearance Requirements: Minimum of 8" above and 3" behind unit for proper ventilation, clearance, and feature access
Facility Supply Rating
Branch circuit with earth ground, meeting plug/cord ratings as well as local electrical safety codes and requirements
- 110-120V AC: 15 A (minimum)
- 220-240V AC: 10 A (minimum)
Power Plug/Power Cord Length
NEMA 5-15 hospital-grade | 115V 60Hz, 8 to 10 ft (2.4-3.0m) Inquire about additional plug/cord options
Certifications/Regulatory Approvals:
QPS (Certified to UL and CSA Standards) IEC/UL61010-2-011 (Dec 2016), CE 2797, RoHS
Refrigeration
- Refrigeration System: VCC compressor-based, forced-air hydrocarbon
- Compressor: Hermetic, variable speed (VCC). Rated speed range: 1300-4000 rpm
- Condenser Type: Air-cooled fin and tube, sealed
- Expansion Device: Cap tube
- Evaporator Type: Direct expansion with forced-air fin and tube
- Defrost Method: Automatic
- Refrigerant: R600a, Isobutane, EPA SNAP compliant
Controller / Configuration Settings
- User Interface: LED digital display, ?C or ?F
- Power Switch: On/Off
- Controller Type: Microprocessor with alarm/monitor
- Security: Lockable door, PIN access via optional access control
- Control Sensor: RTD, stainless steel
- Communication Port: Remote alarm contacts
- Power Failure Alarm: Yes
- High/Low Alarms: Yes, fully adjustable
- Door Ajar Alarm: Yes
- Min/Max Temperature: Yes, display and reset
- Chart Recorder: Yes, integrated, 4" diameter, inkless pressure-sensitive charts, backup battery
- Temperature Monitoring Ballast: Yes, 4 oz bottle with screw cap, solid ballast optional
- Battery Back-up: Yes, 9V, non-rechargeable, lithium
Featured Options & Accessories
Integrated Electromagnetic Access Control - Horizon Series
Horizon Access Control provides fail-secure digital keypad access. Integrated lock is unlocked by entering a user code on the keypad (Factory installed). Entry via PIN. Up to 100 user ID's.
Solid Ballast Simulator Kit for GX Model Refrigerators
Solid Ballast Simulator is a maintenance-free thermal buffering solution designed to replace glycerin bottles. Uses existing wall or ceiling-mounted bracket.
Solid Door
Ideal for storage of light-sensitive products or to reduce risk of diversion.
Top Panel Cover (20 Cu. Ft.)
Top cover for GX 20 cu ft upright refrigerator. Attachment materials provided.
Ventilated Shelf (20/45 Cu. Ft)
Full Shelf, Ventilated, White (with hardware). For field installation (for 20 and 45 cu ft refrigerators and freezers, GX models)
Ventilated Drawers (20 & 45 Cu. Ft.)
Ventilated drawers are fully extendable and powder-coated (for 20 and 45 cu ft Refrigerators, GX models). Hardware is included.
Solid Stainless Steel Drawers (20/45 Cu. Ft.)
Liquid-tight drawers contain spills and are fully extendable (for Horizon Series 20 and 45 cu ft Refrigerators).
Locking Drawers (20 & 45 Cu. Ft.)
Stainless-steel drawers with ventilated cover and key lock offer secure storage for medications, vaccines, blood products, samples, and more (for 20 and 45 cu ft Refrigerators).
