Details

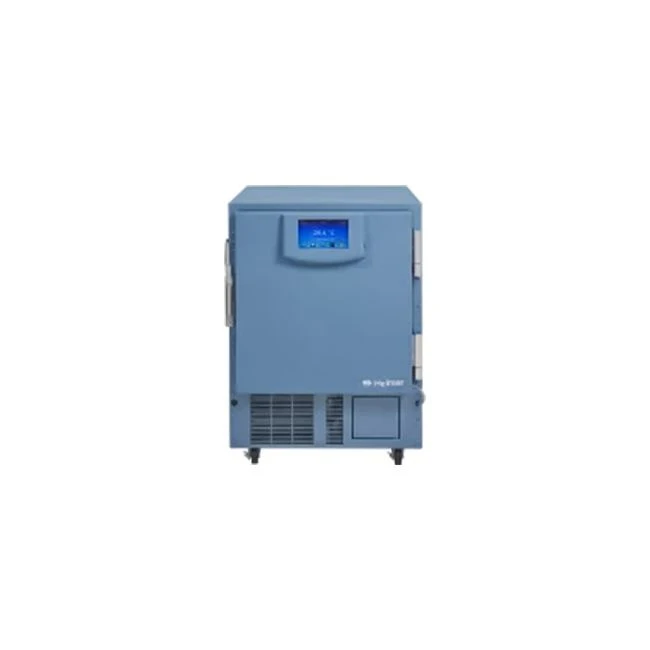

GX Solutions professional medical-grade -30?C freezers are designed for the unique needs of critical healthcare applications such as the storage of plasma and blood products. They deliver optimized control in three important areas: temperature, noise, and energy management. Powered by OptiCool technology, GX Solutions provide improved performance and user experience through energy efficiency, low noise levels, and stable storage environments to safeguard your valuable blood products. GX Solutions and the?i.C3?Information Center?set i.Series?models apart by offering a professional medical-grade freezer with advanced monitoring and control. The powerful i.C3 Information Center is exclusive to i.Series models and provides constant temperature monitoring, multiple information logs, and security features. GX Solutions from Helmer Scientific are the first professional medical-grade freezers for blood banks and blood centers.
They are designed to meet the strict requirements of AABB for secure storage of blood plasma.
Features:
- OptiCool technology pairs a variable capacity compressor (VCC) and natural hydrocarbon (HC) refrigerants to ensure optimal temperature uniformity, recovery, and stability, efficiently manage energy consumption, and meet evolving environmental regulations
- Optimized temperature uniformity, recovery, and stability create best environment for sample and vaccine storage
- Reduced energy consumption (30% more efficient than traditional technology)
- U.S. Environmental Protection Agency SNAP (Significant New Alternatives Policy) compliant refrigerants
- Quiet operation (46dB) creates fewer distractions and better working environment
- i.C3 touchscreen user interface is password protected and provides advanced monitoring and information to ensure protection of stored product
- Audible and visual alarms include power failure, high and low temperature alarms, door ajar, condenser temperature, and low battery
- Superior cabinet built with high-quality construction meets or exceeds performance standards required by the medical and scientific industries
- Solid door and chart recorder standard
- Adjustable, liquid-tight drawers for containment of spills
- Rear access port
- Fits under standard ADA compliant countertop
- Energy Star certified
Facility Supply Rating
Branch circuit with earth ground, meeting plug/cord ratings as well as local electrical
safety codes and requirements1
- 110-120V AC: 15 A (minimum)
- 220-240V AC: 10 A (minimum)
Power Plug/Power Cord Length
NEMA 5-15 hospital-grade | 115V 60Hz, 8 to 10 ft (2.4-3.0m) Inquire about additional plug/cord options
Certifications/Regulatory Approvals
QPS (Certified to UL and CSA Standards) IEC/UL61010-2-011:2016, IEC 61010-1:2010, AMD1:2016, CE 2797, RoHS
Refrigeration
- Refrigeration System: VCC compressor-based, forced-air hydrocarbon
- Compressor: Hermetic, variable speed (VCC). Rated speed range: 1600-4000 rpm
- Condenser Type: Air-cooled fin and tube, sealed
- Expansion Device: Cap tube
- Evaporator Type: Direct expansion with forced-air fin and tube
- Defrost Method: Automatic
- Refrigerant: R290, Propane, EU F-Gas and EPA SNAP compliant
Controller / Configuration Settings
- User Interface: i.C3 color touchscreen, door-mounted, 7", ?C or ?F
- Power Switch: On/Off
- Controller Type: Microprocessor with touchscreen input & display
- Security: Lockable door, password protected settings, PIN access via optional access control
- Control Sensor: RTD, stainless steel
- Communication Ports: USB, Remote alarm contacts, RJ45 (Ethernet), API available for Ethernet connectivity development
- Power Failure Alarm: Yes
- High/Low Alarms - Tests: Yes, fully adjustable, automatic (Peltier) testing
- Door Ajar Alarm: Yes, fully adjustable
- Condenser Temperature Alarm: Yes, fully adjustable
- Min/Max Temperature: Yes, display and reset
- Download: Yes, via USB in PDF or CSV format
- Chart Recorder: Yes, standalone, 4" diameter, inkless pressure-sensitive charts, backup battery
- Event Log: Yes, all alarms, door openings, download via USB
- Temperature Log: Yes, download via USB
- Access Log: Yes, with optional access control, download via USB
- Interactive Temperature Graph: Yes
- Temperature Monitoring: Yes, 4 oz bottle with screw cap
- Battery Back-up: Yes, 20 hr display and alarm back-up for i.C3 touchscreen | Rechargeable 12V, lead acid
Construction
- Forced-air circulation maintains chamber temperature uniformity and provides quick recovery after door openings
- Programmable electrical defrost: Program up to 4 daily defrost events to run during low use periods for greater efficiency
- Solid, self-closing door maintains optimal storage conditions and is field-reversible
- Solid, stainless steel pull out drawers with liquid-tight construction for containment of spills, fully extendable
- Chart recorder with 7-day circular charts (inkless)
- Bacteria-resistant powder coated interior and exterior
- Swivel, locking casters (upright) / Leveling feet (U/C)
- Recessed floor contains spills for easy clean up and maintain integrity of other stored products
- Key lock, settings security and optional access control
Featured Options & Accessories
Integrated Electromagnetic Access Control - i.Series
Access Control provides data capture of unit access and documents how and when access occurred (factory installed). Entry via PIN. Up to 100 user IDs. Access Control log can be downloaded.
Swivel, Locking Casters
2" casters.
Ventilated Shelves
Powder-coated, full-size, adjustable shelves include side and rear guards.
Ventilated Drawers
Fully extendable powder-coated drawers (hardware is included).
Undercounter Pedestal
Carts and pedestals offer greater versatility for your refrigerator or freezer. Medical carts and pedestals are for use in hospitals, clinics, private health practices, pharmacies, and more.
