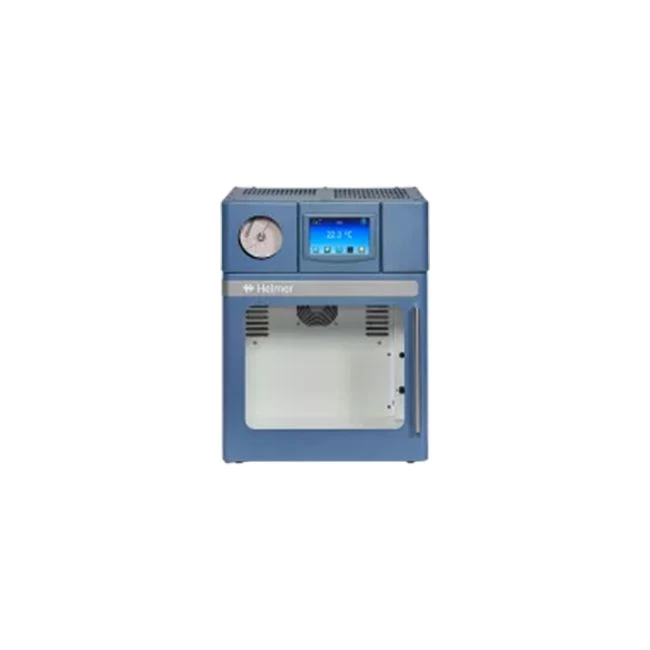

Helmer Scientific 5410010-1 i.Series Pro Line Countertop Platelet Incubator for (1) PF15-Pro Platelet Agitator

Details

Pro Line Platelet Incubators are designed to work together with Pro Line Platelet Agitators for the storage of critical, life-saving platelets. The small footprint of the PC100-Pro fits easily on any countertop. Powered by AdvanceCore technology, Pro Line platelet incubators offer innovations in performance, reliability, monitoring and efficiency for optimized platelet storage.

Features:

Designed to safely store critical, life-saving platelets with precise temperature control
  • AdvanceCore solid-state thermoelectric system results in a reliable, efficient and quiet system, heating and cooling only when needed, optimizing temperature performance
  • AdvanceCore technology transfers heat through water and is HFC-free, helping to meet new environmental standards to reduce the use of HFC refrigerants
  • Reduced energy consumption (80-90% more efficient than traditional technology)
  • Quiet operation (42.9 dB) creates fewer distractions and better working environment
  • i.C3 touchscreen user interface is password protected and provides advanced monitoring and information to ensure protection of stored product. Audible and visual alarms include power failure, high and low temperature, door ajar, and low battery
  • AgiTrak agitation monitoring system monitors the agitator housed within providing real-time speed and cycle count information, and minimum and maximum speed
  • Auto-Stop/Start pauses agitation when incubator door is opened and automatically resumes agitation when door is closed, ensuring continuous agitation of platelets
  • Dual-pane, tempered glass door helps maintain optimal storage conditions Includes a chart recorder with 7-day circular charts
  • Insulation: Rigid foam board Non-CFC, non-HFC, non-HCFC, environmentally friendly U.S. EPA SNAP compliant
  • Key Lock: Yes
  • Access Port: Yes, 0.75" diameter
  • Auto-Stop/Start | Agitator: Yes
  • Clearance Requirements: Minimum 4" above unit, Minimum 4" behind unit for clearance and feature access, additional clearance required +28?C and above

Maximum Power Draw:

435 W (500 W with integrated full system battery backup)

Facility Supply Rating:

15 A (minimum) branch circuit with earth ground (USA)

Power Plug/Power Cord Length:

NEMA 5-15 hospital-grade | 115V 60Hz, 8 to 10 ft (2.4-3.0m) Inquire about additional cord/plug options

Certifications/Regulatory Approvals - QPS (Certified to UL and CSA Standards)CE 2797, RoHS

Refrigeration
  • Cooling System: AdvanceCore solid-state thermoelectric heat pump technology with dual peltier forced-air circulation
  • Refrigerant: Water (in heat pipe)
Controller / Configuration Settings
  • User Interface: i.C3 color touchscreen, 7in | 177mm screen, full color, ?C or ?F
  • Power Switch: On/Off
  • Controller Type: Microprocessor with touchscreen input & display
  • Security: Lockable door, password protected settings, optional PIN entry via keypad
  • Controller Sensor: RTD, stainless steel
  • Communication Ports: USB, Remote alarm contacts, RJ45 (Ethernet), API available for Ethernet connectivity development.
  • Power Failure Alarm: Yes
  • High / Low Alarms - Tests: Yes, fully adjustable, automatic (Peltier) testing
  • Door Ajar Alarm: Yes, fully adjustable
  • Download: Yes, download via USB or Ethernet (API); CSV and PDF reports
  • Event Log: Yes, download via USB
  • Temperature Log: Yes, download via USB
  • Access Log: Yes, with optional access control, download via USB
  • Interactive Temperature Graph: Yes
  • AgiTrak System: Yes, Provides control, monitoring, and reporting for installed Pro Line agitator
  • Chart Recorder: Yes, integrated, 4" diameter, inkless pressure-sensitive charts, backup battery
  • Battery Back-up: Yes, 18 hr display and alarm back-up for i.C3 touchscreen monitoring | Rechargeable 12V, sealed lead acid
  • Battery Back-Up / Integrated Full System: Yes, optional continuous power operation of temperature control and agitation for a minimum of 6 hours | Rechargeable 12V, sealed lead acid (x2)

Options

Integrated Electromagnetic Access Control - Pro

Access Control provides data capture of unit access and documents how and when access occurred (factory installed). Entry via PIN, up to 100 user IDs. Access Control log can be downloaded.

Integrated Full System Backup Battery

Runs the PC100-Pro, including monitoring/alarm and access control (if included). Includes 2 rechargeable 12V, lead acid batteries

Out of stock
SKU
CESS-863427-00001
MPN
5410010-1
Features include: AdvanceCore technology, i.C3 touchscreen user, auto-stop/start, dual-pane, tempered glass door.
Specifications
DiscontinuedNo
Additional Specifications:
  • Product Type: Platelet Incubator
  • Overall Exterior Dimensions: 20.8" (L) x 16.9" (W) x 26.4" (H)
  • Interior Dimensions: 18.5" (L) x 10.7" (W) x 16.2" (H)
  • Temperature Range: +20?C to +35?C
  • Set Point (Default): +22?C
  • Agitator Compatibility: (1) PF15-Pro Platelet Agitator
  • Electrical: 100-240V 50-60Hz
  • Display: i.C3 Color Touchscreen
  • Number of Door: 1
  • Door Hinge Position: Left
  • Ambient Operating Temperature: +15?C to +35?C | +59?F to +95?F
  • Uniformity: ?1?C
  • Energy Efficiency: 1.24 kWh/day
  • Noise Emission: 42.2 dB
  • Heat Rejection / Emission: 180 BTU/hr
  • Net Weight: 106 lbs
Unit of Measure (UOM)Each
