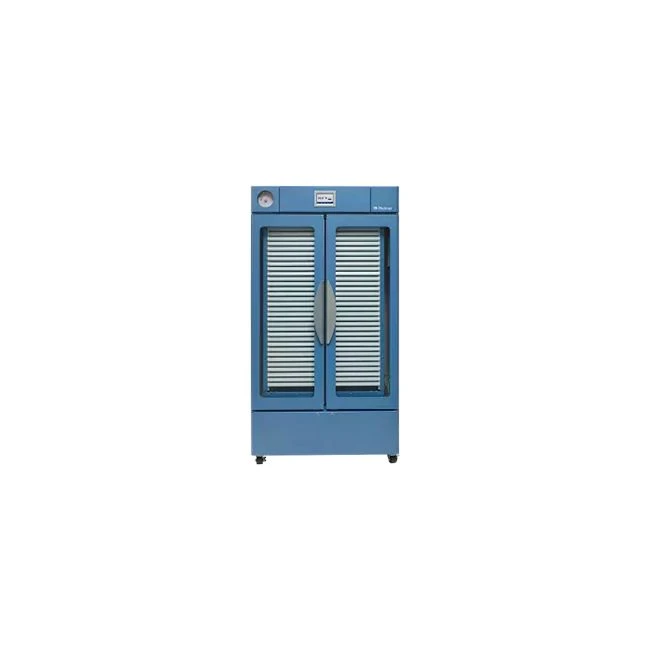

Pro Line Platelet Incubators combine innovations in performance, reliability, and efficiency to offer optimized platelet storage and support blood bank compliance. Powered by OptiCool RT Technology, Pro Line Incubators are designed to store critical, life-saving platelets. Pro Line Floor Model Platelet Incubators feature the i.Center Plus Information Center which provides constant temperature monitoring and control, password protected setting, graphs, and reporting functionality to keep products safe. The PC4200-Pro Floor Model Pro Line Platelet Incubator includes double glass doors and a built-in platelet agitator with 32 ventilated drawers.
Features:
Designed to safely store critical, life-saving platelets with precise temperature control.
OptiCool RT technology pairs a variable capacity compressor (VCC) and natural hydrocarbon refrigerants with pulse heating to deliver a reliable storage solution for the safe storage of platelet products.
Precise temperature uniformity creates optimized storage environment for platelets and other applications that require room-temperature storage.
Reduced energy consumption up to 75% over traditional technology.
U.S Environmental Protection Agency SNAP (Significant New Alternatives Policy), Montreal Protocol, Paris Climate Agreement, and EU F-Gas compliant refrigerants.
Quiet operation (58 dB) creates fewer distractions and a better working environment.
i.Center Plus touchscreen information center is password protected and provides advanced monitoring and information to ensure protection of stored product. Audible and visual alarms include power failure, high and low temperature, door ajar, and low battery. On-demand pdf reports help support compliance.
Built-in 32 drawer agitator stores 384 WBD or 128 SDP.
AgiTrak agitator monitoring system monitors the built-in agitator providing real-time speed and cycle count information, and minimum and maximum speed.
Auto-Stop/Start pauses agitation when incubator door is opened and automatically resumes agitation when door is closed, ensuring continuous agitation of platelets.
Dual-pane, tempered glass doors help maintain optimal storage conditions.
Includes a chart recorder with 7-day circular charts.
Clearance Requirements: Minimum 4" above unit. Minimum 4" behind unit for clearance and feature access. Additional clearance required +28?C ambient and above
Facility Supply Rating:
Branch circuit with earth ground, meeting plug/cord ratings as well as local electrical safety codes and requirements
110-120V AC: 15 A (minimum)
220-240V AC: 10 A (minimum)
Power Plug/Power Cord Length:
NEMA 5-15 hospital-grade | 115V 60Hz, 8 to 10 ft (2.4-3.0m) Inquire about additional cord/plug options.
Certifications/Regulatory Approvals - QPS (Certified to UL and CSA Standards) CE 2797, RoHS
Temperature Monitoring: Yes, Peltier primary monitoring probe. Pre-calibrated replacement available
Battery Back-up: Yes, minimum of 24 hrs display and alarm back-up for i.Center Plus touchscreen monitoring | rechargeable 12V, sealed lead acid
Agitator System:
Agitation Control: Yes, Auto start/stop with door opening, agitation on/off
Agitation Speed: 62 ? 2, user adjustable through hardware setting
Trolley Throw: 1.5 in
Motor: AC motor, 3-phase, with variable speed drive and gentle glide operation
Options
Secondary Monitoring Probe
Non-ballasted air probe available on PC3200 and PC4200 Pro models. Must be ordered with product.
