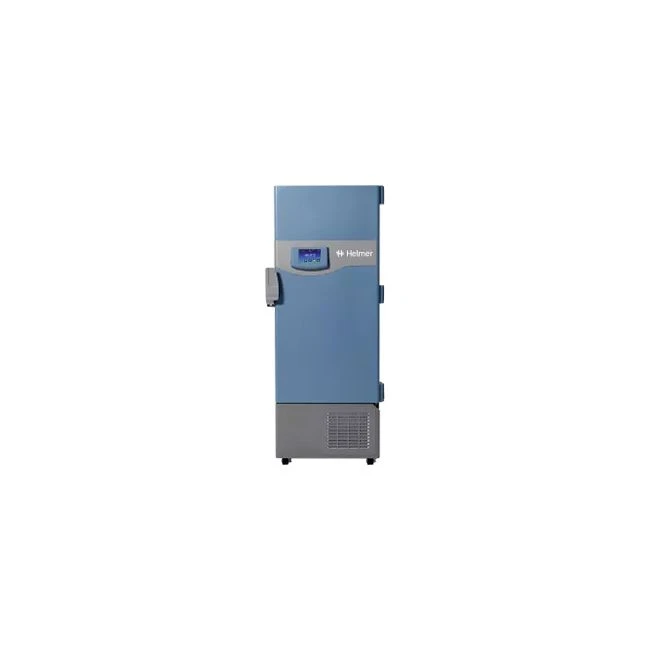

The iUF118-GX is a single door, 18 cu.ft., -86?C ultra-low temperature freezer designed and developed to deliver world-class temperature performance for the storage of samples, reagents, controls, tissue, rare blood, and other biological materials.
Powered by OptiCool cooling technology, the iUF118-GX utilizes variable capacity compressors, natural hydrocarbon refrigerants, innovative oil management, and frost control to provide world-class cooling performance, increased energy efficiency and sustainability, and quieter operation compared to traditional ultra-low temperature freezer technology.
Features:
OptiCool cooling technology with variable capacity compressors and natural hydrocarbon (HC) refrigerants optimizes temperature performance, noise management, and energy management.
HC refrigerants support sustainability: reduce heat output, decrease carbon footprint, lower global warming potential grade (GWP), and have no impact on ozone depletion.
EPA SNAP-compliant refrigerants and foaming agents.
Unique heat barrier system keeps heat out and reduces frost. Includes four levels of containment: fortified outer door with multi-bulb gaskets, insulated and reinforced inner door with dual-blade gaskets, hot gas loop and advanced composite panels in cabinet frame, and premium insulation.
Custom cascade refrigeration system designed to provide maximum heat exchange and optimize oil management.
Innovative i.C3 information center provides intelligent diagnostic information and temperature data, while providing security features to keep information safe.
Guardian Plus access control ensures product integrity.
Building Supply Rating
Grounded outlet on a dedicated circuit, meeting plug/cord ratings and electrical safety codes/req. 115V AC: 15 A (min) 220-240V AC: 10 A (min)
Power Plug/Power Cord
NEMA 5-15 hospital-grade | 115V 60Hz, 8-10 ft (2.4-3M). Inquire about other plug/cord options.
Refrigeration System
Refrigeration system - Two Stage Cascade System
Compressor/Number - 1.0 HP hermetic, variable speed (VCC) / 2
Condenser type - Air-cooled fin and tube / 1
Expansion device - Cap tube - high and low stage
Evaporator type - Split, cold wall
Defrost method - Manual
Refrigerant (Low/High stage) - EU F-Gas and EPA SNAP compliant natural, hydrocarbon refrigerants, High Stage: R290 (propane), Low Stage: R170 (ethane) and R290 (propane)
Compressor - Safeguard High ambient temperature warning, compressor and condenser over-temperature alarms
Control sensor - RTD (stainless steel) (1 ea)
Communication ports - USB, Remote alarm contacts, RJ45 (Ethernet). API available for Ethernet connectivity development
Warm/Cold alarms - Fully adjustable
Logs - Event log (inc alarms and door openings), temperature log, access log, download via USB
Battery backup - 20 hour display and alarm battery back-up for i.C3 touchscreen (12V, lead acid battery)
Clearance Requirements
Allow 4" behind unit
Allow 8" above unit
Side clearance may be needed:
Allow 5" between left cabinet wall and facility wall for key lock access
Allow 7" between cabinet walls of adjacent freezers for unobstructed door swing
