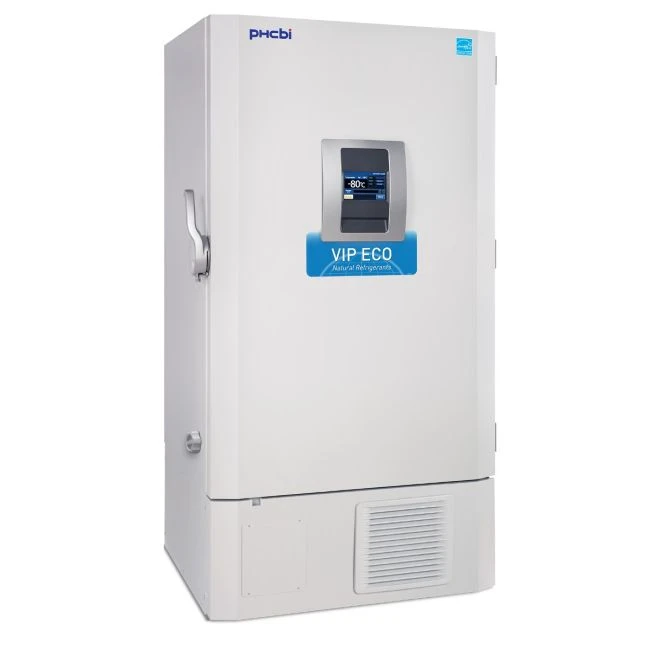

Panasonic MDF-DU702VH-PAVIP ECO Natural Refrigerant -86?C Upright Freezer

Details

VIP ECO Series

PHCbi VIP ultra-low temperature laboratory freezers represent the complete combination of refrigeration, control, alarm configuration, monitoring, and accessibility for product safety at -86°C. Well-known for its reliability, energy savings, and performance, the VIP Series is ideal for material storage in biorepositories, R&D pharmaceutical and biotech companies, contract research organizations, hospitals, clinics, and medical research facilities.

The VIP ECO Natural Refrigerant -86°C Upright Freezer (MDF-DU702VH-PA) provides minimal environmental impact through natural refrigerants, cost efficient performance with the reliability you demand, and the EZlatch system for energy efficiency.

Out of stock
SKU
CESS-877177-00001
MPN
MDF-DU702VH-PA
Specifications
DiscontinuedNo
Additional Specifications:
ELECTRICAL 220V
EXTERNAL DIMENSIONS 40.6" W x 36.8" D x 78.5" H (1030 x 935 x 1993 mm)*
INTERNAL DIMENSIONS 34.3" W x 23.6" D x 55.1" H (870 x 600 x 1400 mm)
EFFECTIVE CAPACITY 25.7 cu.ft. (729 L)
INTERNAL DOORS 2 insulated; ABS, with stainless steel frames and positive latches
INSULATION Foamed-in-place and VIP Plus vacuum insulated panels: 3.1 in (80 mm)
SHELVES Stainless steel, 3 shelves (adjustable); Inner dimensions:33.6" W x 21.0" D (855 x 534 mm); Load: 110 lbs (50 kg) per shelf
ACCESS PORT 3; upper back wall (back-up system), bottom left (recorder sensor), bottom right (access); Inner diameter: 0.6 in (17 mm)
NET WEIGHT 613 lbs (278 kg)
COMPRESSOR (2) 750 W, variable speed
EVAPORATOR Tube on sheet type
REFRIGERANT High-stage R-290 natural refrigerant, Low-stage R-170 natural refrigerant
TEMPERATURE CONTROL RANGE -40°C to -86°C in 1° increments (center of chamber, ambient temperature 30°C, no load)
ALARMS High temperature, low temperature, power failure, sensor failure, filter alarm, door ajar, remote alarm, battery life
COOLING PERFORMANCE -86°C center of chamber (ambient temperature 30°C, no load)
TEMPERATURE CONTROL SYSTEM Microprocessor, touchscreen data entry, password protected
AREA FOOTPRINT 9.78 ft2 (0.91 m2)
DATA MANAGEMENT Optional with LabAlert Monitoring System
SOUND LEVEL 46 dB(A) (background noise 20 dB(A))
STORAGE (BOXES) FOR 2”/51 MM FIBERBOARD BOXES 576
STORAGE (RACKS) FOR 2”/51 MM FIBERBOARD BOXES 24
STORAGE (BOXES) FOR 3”/76 MM FIBERBOARD BOXES 384
STORAGE (RACKS) FOR 3”/76 MM FIBERBOARD BOXES 24
ENERGY STAR CERTIFIED ENERGY STAR Unique ID 2303094
Unit of Measure (UOM)Each
