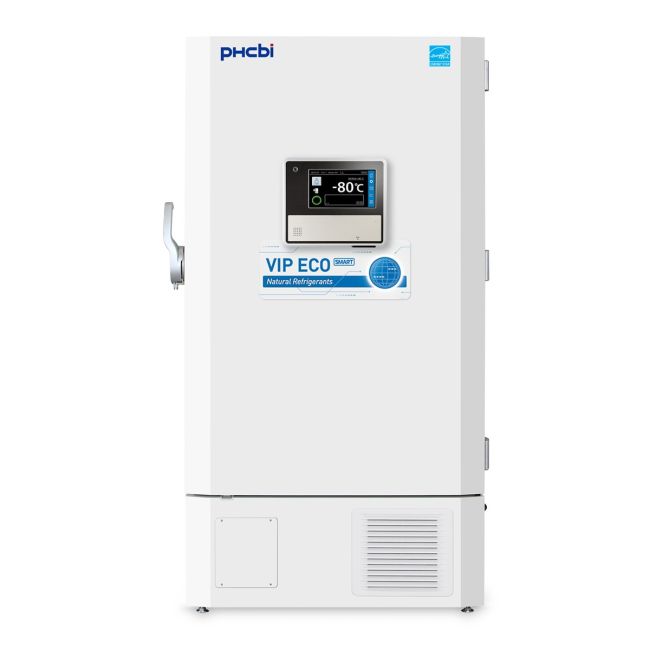

Panasonic MDF-DU703VHA-PA VIP ECO SMART -86?C Freezer

Details

SMART Control Ultra Efficient Ultra-Low Freezer

Independently tested and documented, the ENERGY STAR Certified VIP ECO SMART delivers the lowest daily energy usage (5.40 KWh per day) of any ultra-low temperature freezer in its class. The dual voltage MDF-DU703VHA-PA is purpose-designed for the temperature uniformity and stability required for demanding life sciences applications. It runs on either 115V or 220V power using the corresponding, removable power cords that come standard with every freezer. Variable speed inverter-driven compressors with proprietary SMART control algorithms allow for superior uniformity by running compressors at a slower speed under steady-state conditions.

Out of stock
SKU
CESS-877179-00001
MPN
MDF-DU703VHA-PA
Specifications
DiscontinuedNo
Additional Specifications:
ELECTRICAL 115V | 220V
EXTERNAL DIMENSIONS 40.6" W x 34.7" D x 78.5" H (1030 x 882 x 1993 mm)*
INTERNAL DIMENSIONS 34.3" W x 23.6" D x 55.1" H (870 x 600 x 1400 mm)
EFFECTIVE CAPACITY 25.7 cu.ft. (729 L)
INTERNAL DOORS 2 insulated; ABS, with stainless steel frames and positive latches
INSULATION Foamed-in-place and VIP Plus vacuum insulated panels: 3.1 in (80 mm)
SHELVES Stainless steel, 3 shelves (adjustable); Inner dimensions:33.7" W x 21.0" D (855 x 534 mm); Load: 110 lbs (50 kg) per shelf
ACCESS PORT 3; upper back wall (back-up system), bottom left (recorder sensor), bottom right (access); Inner diameter: 0.6 in (17 mm)
NET WEIGHT 608 lbs (276 kg)
COMPRESSOR (2) 750 W, variable speed
REFRIGERANT High-stage R-290 natural refrigerant, Low-stage R-170 natural refrigerant
TEMPERATURE CONTROL RANGE -40°C to -86°C in 1° increments (center of chamber, ambient temperature 30°C, no load)
ALARMS High temperature, low temperature, power failure, sensor failure, filter alarm, door ajar, remote alarm, battery life
COOLING PERFORMANCE -86°C center of chamber (ambient temperature 30°C, no load)
TEMPERATURE CONTROL SYSTEM Microprocessor, touchscreen data entry, password protected
AREA FOOTPRINT 9.78 ft2 (0.91 m2)
SOUND LEVEL 52 dB(A)
STORAGE (BOXES) FOR 2”/51 MM FIBERBOARD BOXES 576
STORAGE (RACKS) FOR 2”/51 MM FIBERBOARD BOXES 24
STORAGE (BOXES) FOR 3”/76 MM FIBERBOARD BOXES 384
STORAGE (RACKS) FOR 3”/76 MM FIBERBOARD BOXES 24
ENERGY STAR CERTIFIED ENERGY STAR Unique ID 2404812
Unit of Measure (UOM)Each
