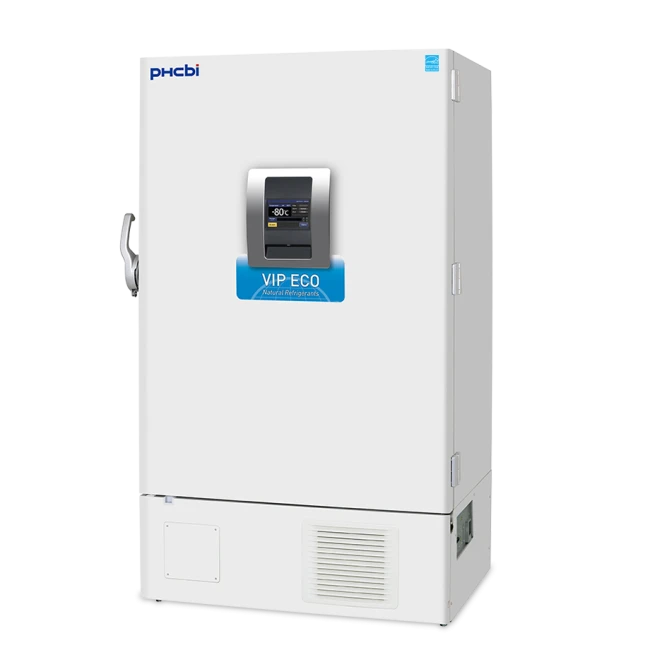

Panasonic MDF-DU901VHA-PAVIP ECO Large Volume Ultra-Low Freezer

Details

Large Volume Ultra-Low Freezer

The VIP ECO -86°C ultra-low temperature freezer provides high volume, long term sample storage capability within an optimum footprint. Natural refrigerants minimize energy consumption, reducing environmental impact. Freezer operation is optimally managed by effectively balancing temperature performance and energy management.

Out of stock
SKU
CESS-877176-00001
MPN
MDF-DU901VHA-PA
Specifications
DiscontinuedNo
Additional Specifications:
EXTERNAL DIMENSIONS 45.3" W x 34.3" D x 78.5" H (1150 x 870 x 1993 mm)
INTERNAL DIMENSIONS 39.8" W x 23.6" D x 55.1" H (1010 x 600 x 1400 mm)
EFFECTIVE CAPACITY 29.8 cu.ft. (845 L)
INTERNAL DOORS 2 insulated; ABS, with stainless steel frames and positive latches
INSULATION Foamed-in-place and VIP PLUS vacuum insulated panels: 3.1 in (78 mm)
SHELVES Stainless steel, 3 shelves (adjustable); Inner dimensions: 38.9W in x 20.9D in (988W x 533D mm); Load: 110 lbs (50 kg) per shelf
ACCESS PORT 2; Back wall and chamber floor; Inner diameter: 0.6 in (17 mm)
NET WEIGHT 723 lbs (328 kg)
COMPRESSOR (2) 1100 W (variable speed)
REFRIGERANT High-stage R-290 natural refrigerant, Low-stage R-170 natural refrigerant
TEMPERATURE CONTROL RANGE -50ºC to -86ºC in 1º increments (center of chamber, ambient temperature 30ºC, no load)
ALARMS High temperature, low temperature, power failure, door, remote alarm, battery life, fan motor life, filter alarm
COOLING PERFORMANCE -86ºC (center of chamber, ambient temperature 30ºC, no load)
TEMPERATURE CONTROL SYSTEM Microprocessor, LCD color touchscreen data entry, password protected
AREA FOOTPRINT 10.79 sq.ft. (~1.0 m2)
DATA MANAGEMENT Optional with LabAlert Monitoring System
SOUND LEVEL 52 dB(A) (background noise 20 dB(A))
VACUUM RELEASE PORT Standard Manual
STORAGE (BOXES) FOR 2”/51 MM FIBERBOARD BOXES 672
STORAGE (BOXES) FOR 3”/76 MM FIBERBOARD BOXES 448
ENERGY STAR CERTIFIED ENERGY STAR Unique ID 2354277
Unit of Measure (UOM)Each
