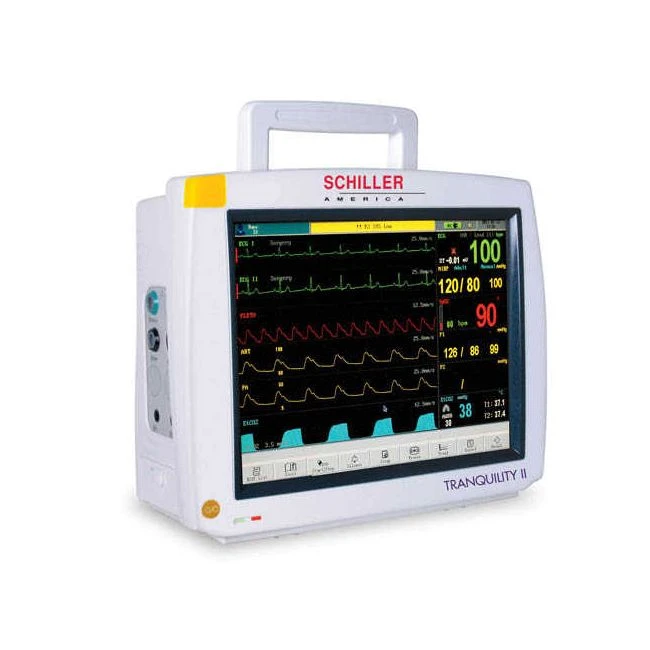

Schiller Tranquility II Touchscreen Patient Monitor

Hausmann Thera-Wall System is a mix and match modular storage system intended for use in physical therapy and rehabilitation clinics. Each oak laminate cabinet module is 32 in long by 19.5 in deep and 78 in high with a weight capacity of 250 lbs.

The Tranquility II features ECG, NIBP, SPO2, temperature, and respiration monitoring, all displayed on a 12.1 inch touch screen LCD. The monitor is adaptable to a variety of situations by allowing the user to switch between 4, 6, and 8 waveforms displayed simultaneously with a 72 hour trend time. Other features include drug dose calculations, S-T Segment analysis, arrhythmia analysis, and customizable alarms. The patient monitor is also available with or without a built-in printer.

With a weight of 11 lbs, built-in handle, and 1 hour of battery life, the Tranquility II can easily follow a patient from room to room and continue to operate during power disruptions. Suitable for neonatal, pediatric, and adult applications, the Tranquility II is available with a range of accessories to meet the needs of your patients. Options for rolling stands, wall mounts, ETCO2, invasive blood pressure, and other advanced features are also available (See accessories below for details).

Tranquility II patient monitors are proudly made in the USA.

• Multi-Lead ECG monitoring
• Non-Invasive Blood Pressure (NIBP)
• Oxy-Cardiorespirography (Oxy-CRG)
• Oxygen Saturation (SPO2)
• S-T Segment & 72 hours trend data analysis
• Temperature
• Respiration
• Arrhythmia
• Drug Calculation
• 12.1 inch touchscreen
• Large font display with 4, 6 & 8 waveforms shown
• Networkable with central monitoring system via a wireless or wired network
• 5-lead ECG cable and standard AAMI line for connection
• Automatic oscillating measurement non-invasive blood pressure
• RA-LL impedance respiration measurement
• Anti-Motion SPO2 Measurement
• S-T Segment & 72 hours trend data analysis
• Compact design for mobile monitoring
• Built-in battery with 1 hour operating time
• Integrated 2-channel thermal printer (0-750000P Only)

Measurement Parameters Include:

• Multi-Lead ECG monitoring
• Non-Invasive Blood Pressure (NIBP)
• Oxy-Cardiorespirography (Oxy-CRG)
• Oxygen Saturation (SPO2)
• S-T Segment & 72 hours trend data analysis
• Temperature
• Respiration
• Arrhythmia
• Drug Calculation
