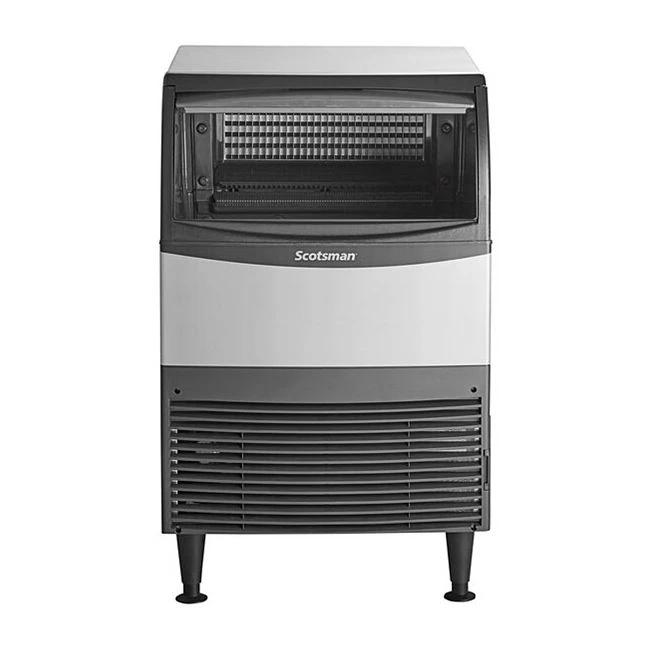

Scotsman UC2024SW-1 24" Water Cooled Undercounter Small Cube Ice Machine, 230 lbs/24 Hour Ice Yield-Discontinued

Details

Features:

Space Saving Design
  • Only 24" wide, this ice maker can be placed in the tightest locations.
  • Front breathing - No side clearance required for flexible placement.
  • Recessed utility chase provides clearance for tight installs
Ease of Use
  • Removable external air filter for easy cleaning.
  • Unit specific QR code for quick access to service manuals, cleaning guides.
  • Ergonomic slide back door allows easy access to ice in the bin.
  • Power cord, NEMA 5-15P plug, ice scoop and adjustable legs are included for quick and easy installation.
Reliability
  • Heavy duty, rust-free front panel and corrosion-resistant aluminum alloy side panels for maximum lifespan.
High Production:
  • Produces up to 230 lbs per day and stores 80 lbs, maximizing ice output despite its small footprint.
Environmentally Friendly
  • Meets new US federal energy efficiency requirements.
  • Meets US Safe Drinking Act low lead requirements.
  • Non-ozone depleting R-134A refrigerant.

This product is discontinued.

Search products in the same Ice Machines
SKU
CESS-862888-00001
MPN
UC2024SW-1
Features include: Removable external air filter for easy cleaning, this ice maker can be placed in the tightest locations, recessed utility chase provides clearance for tight installs.

This product has been discontinued. For information on a similar product or replacement please call us.

$3,264.13
Discontinued
Specifications
DiscontinuedYes
Additional Specifications:
  • Product Type: Ice Machine
  • Dimensions: 24" (L) x 28.5" (W) x 39" (H)
  • Small Cube Dimensions: 0.88" (L) x 0.88" (W) x 0.38" (H)
  • Condenser Unit: Water
  • Includes Adjustable Legs: 6" (H)
  • Storage Capacity: 80 lbs
  • Basic Electrical: 115/60/1 (Volts/Hz/Phase)
  • Max. Fuse Size or HACR Circuit Breaker: 15 (Amps)
  • Min. Circuit Ampacity: Cord
  • Number of Circuit Wires: 2
  • Energy Consumption: 4.91 (kWh/100 lbs (90?F(32?C)/70?F(21?C))
  • Potable Water Usage: 21.8/83.0 (Gallon 100 lbs ((90?F(32?C)/70?F(21?C))
  • Condenser Water Usage: 111/422.7 (Gallon 100 lbs ((90?F(32?C)/70?F(21?C))
  • Water Temperature: 40?F (4.4?C) - 100?F (38?C)
  • 24 Hour Ice Yield: 230 lbs
  • BTU Per Hour: 3,900
  • Water Pressure: 20 PSIG (1.4 Bar) - 80 PSIG (5.5 Bar)
  • Electrical Voltage: -5% - +10%
  • Refrigerant Type: R-134A
  • Certifications: ISO, cULus, NSF, AHRI
Unit of Measure (UOM)Each
