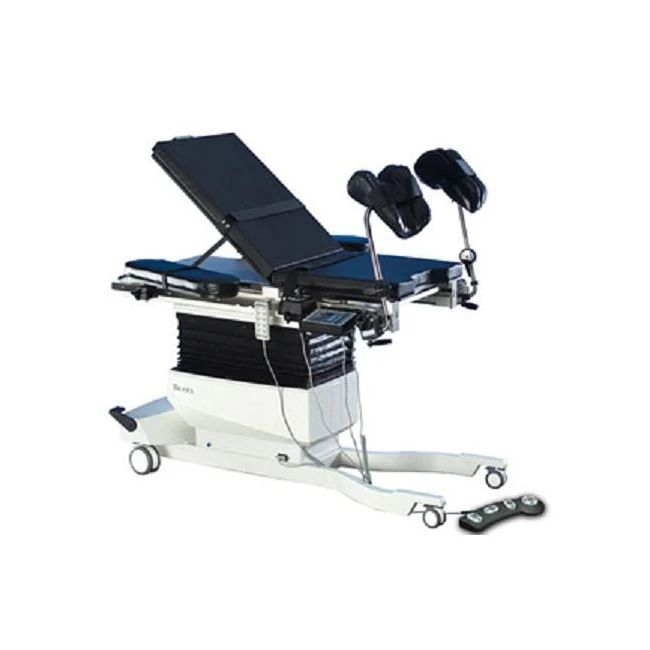

Designed and equipped specifically for seed implantation procedures, the Brachytherapy C-Arm Table features a radiolucent extension that provides capability for brachytherapy treatment involving the upper body and general C-Arm applications. Motorized actuation of height, X-Y, lateral roll and Trendelenburg motions of the tabletop, with pre-programmed features, ensure quick and safe tabletop positioning during any phase of a procedure.
The narrow Fiberesin™ tabletop of the Brachytherapy C-Arm Table is cantilevered to accommodate portable or ceiling-suspended C-Arms. Radiolucent areas are free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Optional Cassette Tray and X-ray Grid allow for use of overhead or portable x-ray. Functional design provides complete access while minimizing radiation exposure to clinicians.
Control Made Easy A "Level" feature returns the table to 0° tilt and 0° lateral roll, bringing the table quickly to a level position. The portable hand-held and foot-operated controllers also adjust the table.
More Adjustments and Features… The table back positioning adjusts with a touch-handle lock/unlock mechanism to an 80° angle with incremental stops at 20°, 30°, 40°, 50°, 60°, 70° and 80°.
The table comes equipped with a lightweight non-imaging patient transfer extension and a radiolucent extension. The radiolucent extension provides capability for vascular, cardiac, and other general C-Arm applications. A standard OR accessory rail makes stepper positioning quick and easy. Select from knee crutches or the PAL stirrups, standard or Dura Board arm boards—configure the table to your exact specifications.
Both AC and battery power are standard. When operating on battery, there are no power cords to hinder movement or block casters. Battery charging can be accomplished during off hours by plugging in the AC power cord. An optional battery with separate charging unit can provide continuous cordless operation.
Features:
Radiolucent Area – 54" x 17.5"
Fiberesin™ Tabletop – Narrow; cantilevered to accommodate portable or ceiling suspended C-Arms
Fowler Positioning – Industry exclusive, 0° to 80°
Tabletop Positioning – Motorized, five-axis
Hand and Foot-Operated Controllers – For convenient positioning
Low Profile Base – For unrestricted C-arm movement
Accessory Rails
AC and Battery Power – Standard
Specification:
Dimensions: 84.5" l x 25.5" w (214.6 x 64.8 cm) with OR accessory rails
Tabletop: 53" l x 21" w (134.6 x 53.3 cm); 84" l (213.4 cm) with extension
Lightweight Extension (For patient transfer only, not for imaging.): 26.5" l x 21" w (67.3 x 53.3 cm)
Radiolucent Extension: 31" l x 25.5" w (78.7 x 64.8 cm) with OR accessory rails
Radiolucent Area: 54" l x17.5" w (137.2 x 44.5 cm)
Tabletop Material: Three Fiberesin™ sections – each with individual 2" mattress
Mattress: Individual, seamless, 2" thick (5 cm), one for each section
Motions: - Height Adjustable: 34" to 43.5" (86.4 to 110.5 cm) - Tabletop X Motion (head-to-toe): 20" (51 cm) - Tabletop Y Motion (side-to-side): 10" (25.4 cm) - Trendelenburg: 0° to 20° - Reverse Trendelenburg: 0° to 20° - Lateral Roll: 0° to 20° - Fowler Positioning: Adjusts from 0° to 80° with touch handle lock/unlock
Controls: - Hand Control: activates all motions - Foot Control: activates all motions
Optional: X-Ray Film Tray: Removable film cassette tray for 14" x 17" film with cassette mask for 10" x 12" film. Film cassette tray can be removed from either side of the table. X-Ray Grid: Removable X-Ray grid, 103 line, 8:1 ratio
Accessory Rails: Standard OR accessory rails 1.125" x .375" (2.86 x .95 cm) on table (rails also on table imaging extension)
Patient Restraints: Two-body straps, two ankle straps
Finish: Powder coat
Patient Capacity: - In urologic position: 500 lb (227 kg) - In use with radiolucent extension: 400 lb (181.4) - Weight tested to four times the patient load rating.
Shipping Weight: 877 lb (398.6 kg)
Power: 115 VAC or 230 VAC and Battery. Battery automatically charges when the table is plugged in. An additional battery can be charged with an optional wall-mounted charger.
