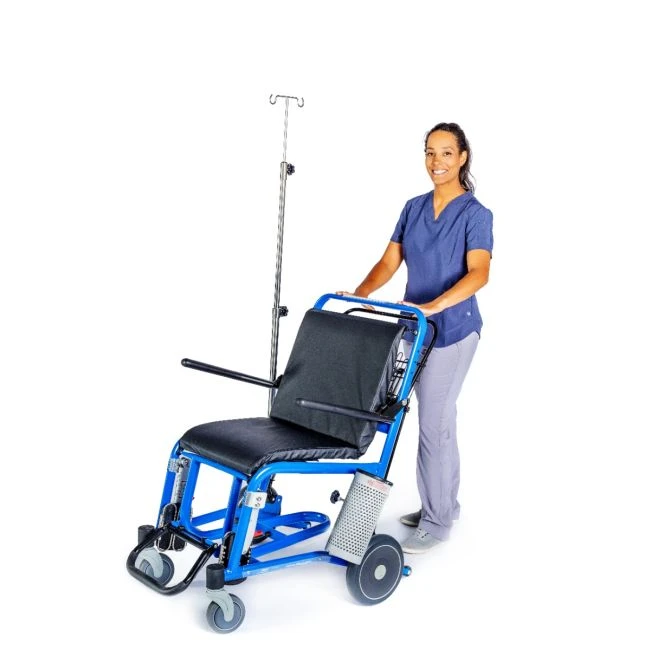

Staxi RA010 Ranger Chair

*Millimeter measurements are rounded up to the highest whole digit*

Overall Dimensions (in/mm)

Width - outside back rear wheels: 31/788

Length - back of anti-tip wheel to front of front caster cap: 33/839

Seat to floor - front of frame: 21.8/554

Seat to floor - at cushion fold: 19.5/496

Back height - frame at cushion fold to top of push bar: 23/585

Seat width - widest point, at the cushion fold: 24/610

Armrest height - floor to top of the front of armrest: 31/788

Footrest - front of front caster cap to front of footrest with footrest in usage position: 4/102

Luggage rack cube - length x width x height: 22x23x10/559x585x254

Accessories (in/mm)

Side mount O2 holder- Width of chair when installed: 33.5/851

IV pole - height floor to tip (extended): 70/1778

IV pole - height floor to- tip (retracted): 41/1042

Security pole - height floor to tip (installed): 75/1905

Weight

Chair weight: 79 lbs (36kg)

Occupancy capacity: 800lbs (363kg)

Nesting (in/mm)

Front of front caster (in nested orientation) to rear of back wheel - first chair: 32.5/826

Each additional chair, amount added when two chairs are nested: 11/280

Last (back) chair - back of the rear wheel to the back of the anti-tip wheel: 4/102
