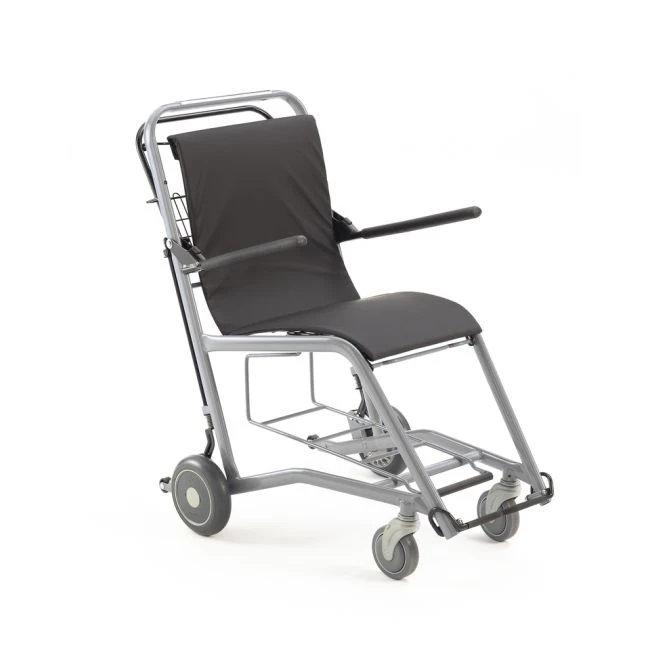

Staxi ST010 Standard Chair

*Millimeter measurements are rounded up to the highest whole digit*

Overall Dimensions (in/mm)

Width - outside back rear wheels: 27/690

Length - back of anti-tip wheel to front of front caster cap: 38/966

Seat to floor - front of frame: 21.7/552

Seat to floor - at cushion fold: 19.5/496

Back height - frame at cushion fold to top of push bar: 22/559

Seat width - widest point, at the cushion fold: 20/508

Armrest height - floor to top of the front of armrest: 31/788

Luggage rack cube - length x width x height: 19x19x7/483x483x178

Accessories (in/mm)

Side mount O2 holder- Width of chair when installed: 30/762

IV pole - height floor to tip (extended): 62/1575

IV pole - height floor to- tip (retracted): 39/991

Security pole - height floor to tip (installed): 75/1905

Weight

Chair weight: 57lbs (26kg)

Occupancy capacity: 600lbs (272kg)

Nesting (in/mm)

Front of front caster (in nested orientation) to rear of back wheel - first chair: 33/839

Each additional chair, amount added when two chairs are nested: 10.8/275

Last (back) chair - back of the rear wheel to the back of the anti-tip wheel: 5.2/133
