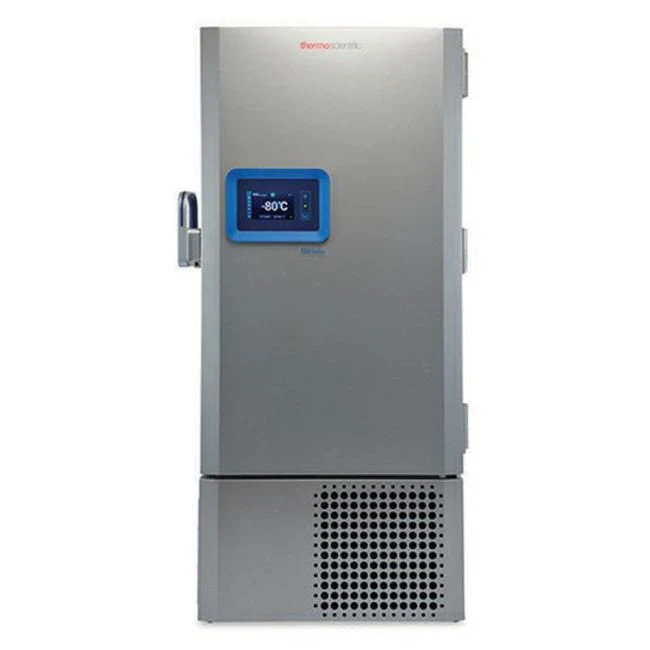

Thermo Fisher Scientific TSX50086FALB TSX Universal Series 24.1 Cu. Ft Ultra-Low Freezer with Illumination Kit

Details

The Thermo Scientific TSX50086FALB ultra low temp (ULT) freezer has a minimum temperature of -86°C with a 24.1 CU FT (682 L) volume. The new TSX Universal Series ULT freezers herald a new era in performance with Universal V-Drive technology, delivering tighter control and faster recovery times. Coupled with an expanded setpoint range, universal voltage, whisper-quiet operation, simplified software updates and much more, TSX Universal seamlessly adapts to your workflow. Advancing sustainability, they are ENERGY STAR® certified with a 33% efficiency improvement, ACT labeled, and produced in a Zero-Waste to Landfill certified facility in Asheville, North Carolina.

Features:

  • Illumination Kit
  • 2 inner doors / (5 door open)
  • Adjustable shelves
  • High density footprint
  • Stainless steel interiors
  • Extra large capacity
  • 7 Point gasket design
  • Vacuum insulation panels
  • Cold rolled steel cabinet
  • Onboard diagnostics Optional
  • 100s of rack options
  • Stainless steel interiors
  • UL 61010, CE, ISO 13485
  • ISO 5.5 Cleanroom
  • Factory acceptance reports
  • Calibration certificates
  • Event & temperature logs
  • Settings security
  • Back-up battery Optional
  • IQ/OQ documents
  • Electronic locks
  • LN2 and CO2 back-up systems status lights
  • Customizable display
  • Eye level, high contrast large text display
  • Automatic pressure relief
  • Frost management system
  • Multiple access ports
  • Easy roll casters
  • Easy to clean surfaces
  • Full 7" capacitive touch screen
In stock
SKU
CESS-860166-00001
MPN
TSX50086FALB
Features include: 2 inner doors / (5 door open), adjustable shelves, high density footprint, stainless steel interiors, extra large capacity
$42,406.04
Specifications
DiscontinuedNo
Additional Specifications:
  • Product Type: Freezer
  • Dimensions: 37.6" (L) x 34" (W) x 78" (H)
  • Interior Dimensions: 28.8" (L) x 28.3" (W) x 51.2" (H)
  • Capacity: 24.1 Cu. Ft
  • Shelf Capacity: 205 lbs
  • 2Ml Vial Capacity: 50,000
  • Temperature Range: -40°C to -86°C
  • Electrical Requirements: 110 - 230 Volt, 50/60Hz
  • Electrical Plug Type: NEMA 5-15
  • Interface: USB
  • Door Style: 1 Outer, 2 Inner
  • Display: Touchscreen LCD
  • Temperature Control: Digital Controller
  • Holds: 500 2" Boxes
  • Number of Shelves: 3
  • Smart View Compatible: Onboard accessory 5V and POE outlets
  • Monitoring Options: Audible and Visual High and Low Temperature Alarms, Wireless
  • Access Security: Standard Key Lock, Padlock Loop, Setpoint and Settings Security (Optional NFC Key Card Access)
  • On-Board Datalogging: Temperature, Events, Diagnostics
  • Setpoint Security: 2 Modes with Full Password or PIN options
  • Energy Consumption (Kw-Hr/Day/cuft): 0.31
  • Peak Variation From -80°C Setpoint (°C ): +7.1 / +0.4
  • Door Opening Recovery (Minutes): 24
  • Warm Up Time (-80°C Deg To -50°C) (Minutes): from -80°C to -50°C at 282 min
  • Refrigerant: R290 in First Stage, R170 With R290 Mix in Second Stage (SNAP compliant)
  • Defrost: Manual
Unit of Measure (UOM)Each
