Wallach L300AC Hand-Held 300 ABI W/ Keypad

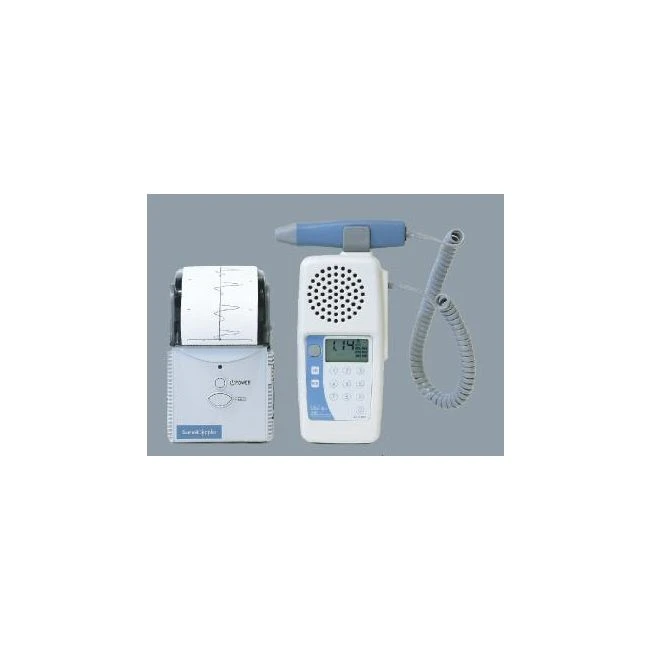

The Wallach / Summit Doppler Hand-Held LifeDop 300 ABI with Keypad

The LifeDop 300 ABI system features a keypad for pressure entry and automatic ABI calculation. It is a portable bi-directional Doppler with compact printer for the diagnosis of Peripheral Arterial Disease (P.A.D.). The system includes Doppler, printer, bi-directional probe, adhesive-backed label paper, forms, ABI video, examination guide, quick reference guide and ABI glossary, with 4 cuffs and aneroid package.

Features:

• Keypad for easily entering pressure data & calculating the indices
• Stores pressure data & two ankle waveforms prior to printing
• Proven technology:
  • Bi-directional probe and high speed printer
  • Improved flow direction indicator on display
• ABI 4 Cuff Package includes:

  • Doppler main unit 8 MHz bi-directional probe
  • Portable printer with cable
  • Aneroid
  • (2) 10 cm cuffs
  • (2) 12 cm cuffs
  • Adhesive-backed label paper
  • Report forms
  • ABI training video
  • ABI chart
  • Ultrasound gel (60 g)
  • Carrying Case
• Main Unit and Probe:

  • Bi-directional 8 MHz high sensitivity probe (optional 5 MHz probe)
  • Separate waveforms indicate flow toward and away from the probe
  • Auto-scaling and no calibration required
  • 200-4000 HZ bandwidth cover peripheral applications
  • User replaceable probe cable
  • Low battery indicator
  • Long battery life (3 AA alkaline batteries)
• ABI Calculation and Waveform Storage:

  • Calculates ABI for both sides using the higher of the two arm pressures
  • Accepts pressures from 30 to 299 mmHg
  • Stores Doppler waveform from each ankle for printing
• Compact Portable Printer:
  • Label paper for fast report generation
  • High speed Rechargeable (Li-lon battery)

L300AC
