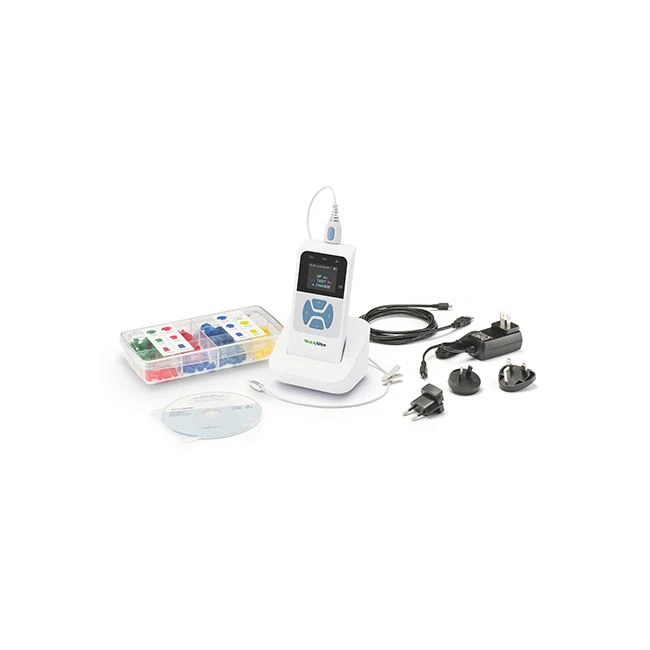

Welch Allyn 39500-NP OAE Hearing Screener Set

In stock
SKU
CESS-733011-00002
MPN
39500-NP

Includes: Charging Stand, Bluetooth Wireless and USB Connectivity, Single Use Ear Tip Starter Kit - 3mm to 15 mm sizes, Calibration Certificate, and Data Manager Software, Lithium-Ion Integrated Battery.

For the model with a printer, see 39500.

Hillrom/Welch Allyn is now part of Baxter Healthcare

$6,462.87

Objective hearing screening technology, designed to address the challenges practitioners face when screening young patients for hearing loss control in testing environment and easy access to patient data for interpretation and follow-up.

The next generation in objective hearing screening technology, designed to address the challenges practitioners face when screening infants, newborns, toddlers, preschool, school-age children and adults. Objective screening, paired with breakthrough technology, make the OAE hearing screener an ideal hearing test machine when testing for otoacoustic emissions. Rapidly screen newborns and infants with minimal cooperation required. No behavioral response required for those too young to respond or who have trouble sitting still. Tests are fast, just three button pushes turn on the device and complete tests on both ears in approximately 8-16 seconds per/ear (assumes DPOAE screening with 2-4 second averaging).

Low Cost Disposable Ear Tips

Fit all sizes of ears, from infant to geriatric. Sizes range from 3 mm to 15 mm.

Durable Probe

Designed with HDMI connector to help eliminate connector pin breakage.

Data Manager Software

An intuitive and powerful application to manage, view, archive and export test results.

  • Results can be sorted by ear, testers, dates and outcomes
  • Export full-color, 8.5" x 11" reports in multiple formats with graphic and tabular data, results notes and test information perfect for consulting with parents and colleagues and for record keeping
  • Easily attach test results to patient records within most emr systems
  • Store up to 250 tests on device, even when battery life is depleted
  • Transfer test data from OAE hearing screener to data manager software in seconds, via hard-wired or wireless connectivity from device to pc

Features:

  • Use this infant hearing screener to rapidly screen newborns and infants with minimal cooperation required
  • No behavioral response required for those too young to respond
  • Noise-management technology addresses poor test results due to ambient sound
  • In the ear calibration helps improve test accuracy, ensuring probe is secure
  • Autostart check makes sure test is started in acceptable conditions
  • User-friendly screen prompts guide staff through the test
  • Tests at key speech frequencies 2, 3, 4 and 5 khz
Specifications
DiscontinuedNo
Additional Specifications:
  • Product Type: OAE Hearing Screener
  • Measurement Types:
    • DPOAE Screening: 2 Fixed Protocols
    • Frequencies: 2,000 kHz; 3,000 kHz; 4,0000 kHz, 5,000 kHz
    • L1/L2: 65/55 dB
    • SNR: 6 dB
    • Pass Criteria: 3 Frequencies at 6 dB SNR
    • Averaging Time: 2 and 4 seconds
    Handheld Unit:
    • Display: Color OLED Display
    • User Input: 4 Button Operation
    • Connectors: Micro-USB for Charging and Communication; HDMI for Probe
    • Communication to PC: Micro-USB or Wireless
    • Languages: English, German, Spanish, French, Polish, Russian, Italian, Turkish, Portuguese, Chinese
    • Power Supply: 5.0 V DC, 1.6 A
    • Weight: 6.4 oz
    Probe:
    • Connector: HDMI
    • Probe Description: Integrated Microphone and Receivers in Probe Head; Calibration Data Stored on Probe
    • Microphone Noise: 20 dB SPL @ 2 kHz (1 Hz Bandwidth), -13 dB SPL @ 1 kHz (1 Hz Bandwidth)
    • Ear Tips: Single-Use Disposable Ear Tips
    • Cable Length: 40"
    • Weight: 1 oz
  • Cradle Operation: Provides PC Database Communication and Charging
  • Data:
    • Test Memory: 250 Tests on Unit
    • Patient Names: Patient Names on Unit (optional)
    • Database Software: Report Output to PDF, RTF, Image files
    Power:
    • Battery: 3.6 V Rechargeable Lithium Ion
    • Battery Life: 15 hours on Time
    • Charge Time: 4 hours to 100%
    • Data Manager Software Requirements:
      • System Requirements: Computer (Minimum), Operating System, Software
      Data Manager Software Requirements Computer Requirements (minimum):
      • CPU - 1 GHz
      • RAM - 512 MB
      • Hard Disk - 2 GB
      • CD-ROM - Required if Installing From a CD
      • Network Connections: : 1 Each If Installing From A Network Location Or Printing To A Network Printer
      • Internet Browser: Internet Explorer 6.0 Or Later And Current Service Pack Are Recommended
      • USB Port: 1 Each For The Screener, Data Manager
      • Display Resolution: 1024 x 768
    • Supported Operating Systems: Microsoft Windows 7 Pro, 8.1 Pro and 10
    • Software Requirements: Microsoft .NET Framework version 4.0, Adobe Reader, FTDI USB Driver for Instrument Connection
    Accessories:
    • Standard: Handheld Unit, Probe, Micro USB Charging Cable for Charger, Database Software and Micro USB Connector, Disposable Ear Tip Kit and Tubes, User Manual, Quick Guide, Calibration Certificate
    • Optional: Cradle, Printer, Carry Case, Ear Tips, Replacement Cables, Replacement Probe and Probe Tubes
  • Quantity: 1/Pack
Unit of Measure (UOM)Each
IncludesCharging Stand, Bluetooth Wireless and USB Connectivity, Single Use Ear Tip Starter Kit - 3mm to 15 mm sizes, Calibration Certificate, and Data Manager Software, Lithium-Ion Integrated Battery
