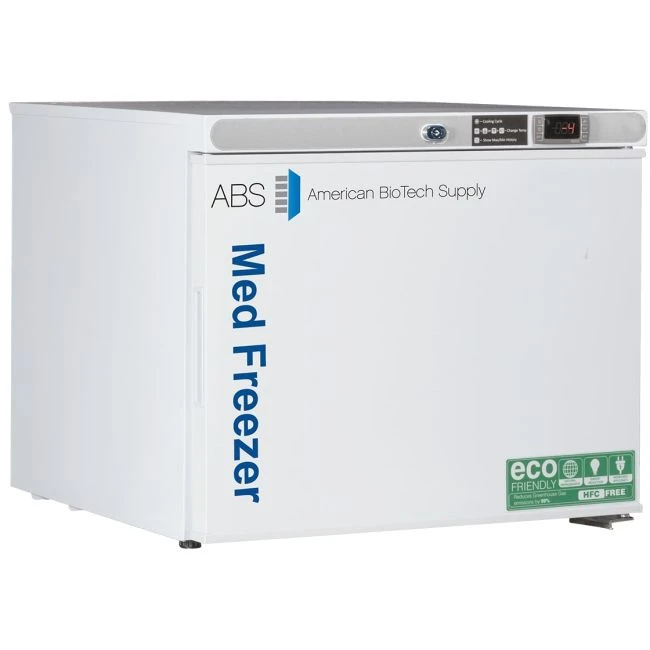

American BioTech Supply Premier Freestanding Countertop Pharmacy/Vaccine Freezer, 1.3 Cu. Ft., Auto Defrost, PH-ABT-HC-UCFS-0120A

Out of stock
SKU
CESS-731969-00003
MPN
PH-ABT-HC-UCFS-0120A
Features include: One solid swing door, right hinged, two adjustable shelves, keyed door lock and leveling legs.

Quote Information

The Premier Pharmacy Freestanding Undercounter Freezers feature a microprocessor temperature controller and display, allow for precise temperature control, verification and recovery versus mechanical style thermostats. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.

Disclaimer: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.

The Freestanding models (“UCFS”) require 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

The acceptable temperature ranges for vaccine storage are -58°F to 5°F (or -50°C and -15°C) in the freezer.

Features:

  • 2 adjustable shelves with guard rail to prevent product from being pushed against back wall
  • Bottom footed shelf to allow air circulation
  • Vaccine storage power cord warning label
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Leveling legs
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Pharmacy refrigerator/freezer toolkit and temperature logs

Temp Controller

  • Digital temperature display
  • Audible and visual high and low temperature alarms, with battery back up
  • Remote alarm contacts
  • 2 probes; 1 in air and 1 in glycol bottle
  • Temperature monitor device (tmd) complies with the current cdc guidelines, with 3 years certification of calibration, “buffered” probe in the product simulated solution, min/max memory. F/c switchable, field installable, and visual & audible temp alarm
Specifications
DiscontinuedNo
Additional Specifications:
  • Product Type: Freezer
  • Exterior Dimensions: 23.75" (L) x 24" (W) x 20.38" (H)
  • Interior Dimensions: 18" (L) x 9.13" (W) x 13.88" (H)
  • Defrost Type: Auto
  • Capacity: 1.3 Cu. Ft
  • Number of Door: 1
  • Number of Shelves: 2 Adjustable
  • Door Type: Solid/Swing Door
  • Hinge Type: Right Hinged
  • Adjustable Operating Temperature Range: 5°F – -13°F (-15°C – -25°C)
  • Probe Access Port: 0.38"
  • Refrigerant: R600a
  • Volts: 115 V
  • Frequency: 60 Hz
  • H.P: 1/8
  • Amps: 1
  • Weight: 80 lbs
  • Energy Consumption: 1.4 kWh/day
  • ADA compliant: Yes
  • Certification: UL/C-UL Listed, Energy Star Certified

Auto Defrost Cycle Every 6 Hours:

  • Max Air Temp In Empty Freezer: 4.34°C
  • Max Air Temp In Loaded Freezer: -2.89°C
  • Max Sample Temp In Empty Freezer: -4.76°C
  • Max Sample Temp In Loaded Freezer: -9.58°C
Unit of Measure (UOM)Each
Dimensions23.75" (W) x 24" (D) x 20.375" (H)
Laminate ColorWhite
Warranty2 Years parts and labor
Number of Shelves2
