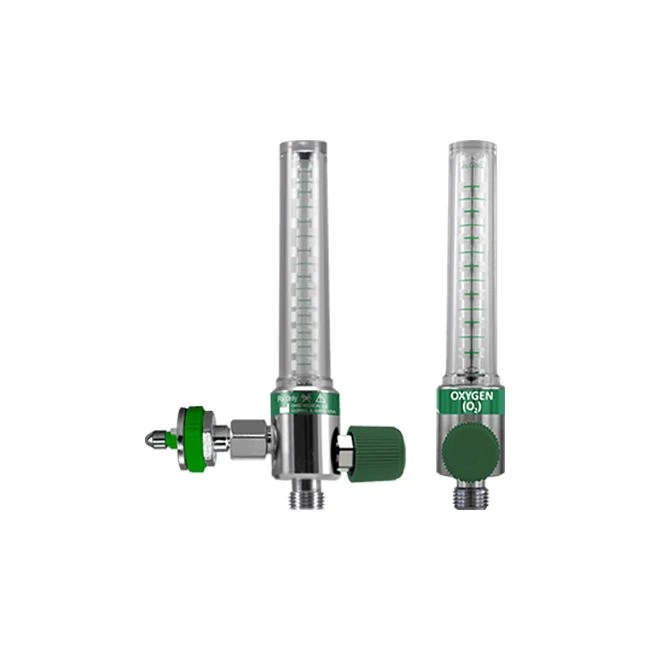

Ohio Medical 7701-1260-907 FM, O(ODS), DIA, DS

In stock
SKU
CESS-823065-00001
MPN
7701-1260-907
Features include: Impact resistant flow tube and shroud, flow tubes individually tested for accuracy.
$92.00

The Ohio Medical 7701-1260-907 FM, O(ODS), DIA, DS from Ohio Medical.

Ohio Medical 7701-1260-907 FM, O(ODS), DIA, DS

Specifications
DiscontinuedNo
Additional Specifications:
  • Product Type: Flowmeter
  • Dimensions: 1.1" (L) x 3.4" (W) x 5.5" (H)
  • Gas: Oxygen
  • Source Pressure: 50 psi
  • Type: Single
  • Flow Rate: 15 L/min
  • Power Take-Off: No
  • Wall Connection: Diamond Ohmeda
  • Patient Connection: DISS Outlet
  • Accuracy Averages: +/- 0.5 LPM or +/- 10% of reading (whichever is greater)
  • Min. Flood/Flush: 50 LPM
  • Scale: 0-15 LPM
  • Increments: 0.5 LPM (from 1 to 5 LPM)1 LPM (from 5 to 15 LPM)
  • Calibration Pressure and Temperature: 50 psig (320 kPa) and 70°F (21°C) as specified on the flow tube label
  • Maximum Pressure: 100 psig (690 kPa)
  • Weight: 0.75 lbs
Unit of Measure (UOM)Each
