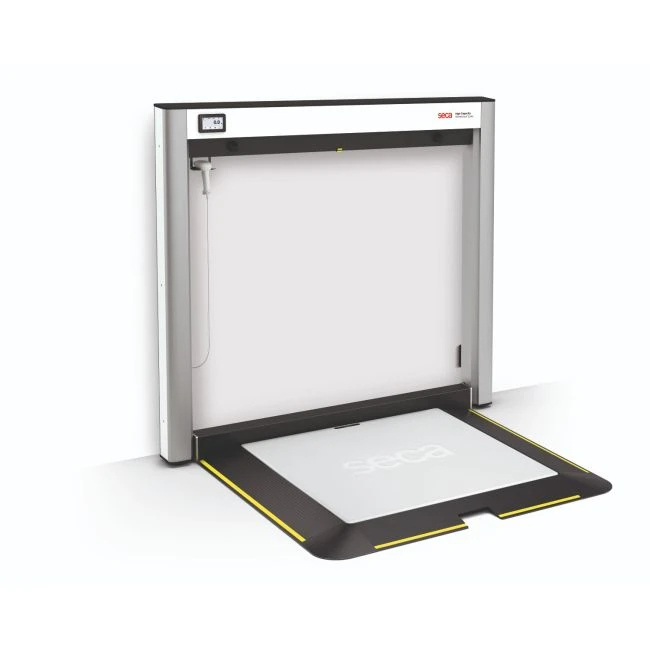

Seca 6203400009 Xline Fold Wall-Mounted Fold-Up Wheelchair Scale

Details

The seca XLine Fold redefines efficiency in clinical weighing—delivering a full-size, bariatric-ready platform right at the point of care, while folding away to preserve critical floor space. Designed for high-traffic areas like ICU, ED, Med-Surg, and Bariatric Units, this innovative wheelchair scale provides maximum capability without compromising your layout.

Unfold Maximum Capability—Without Sacrificing Space
Wall-mounted for stability and powered by gas-spring controlled deployment, the XLine Fold opens smoothly and safely—eliminating heavy lifting, pinching, or strain. Its extra-large platform (43.3” x 43.3”) accommodates a wide range of wheelchairs, transport chairs, and walkers, while low-profile ramps and three-sided access ensure smooth patient entry from any direction.

In stock
SKU
CESS-876922-00001
MPN
6203400009
  • Gas-spring powered deployment eliminates heavy lifting, pinching, or strain - keeping nurses safe from the start
  • Built to handle bariatric demands: supports up to 1,100 lbs with rock-solid stability for safe weighing
  • Tare-by-Scanning function instantly subtracts the stored weight of wheelchairs - streamlining workflow and reducing manual steps
$15,659.48
Specifications
DiscontinuedNo
Additional Specifications:
  • Model number 620
  • Capacity 1,100 lbs / 500 kg
  • Graduation 0.2 lb / 100 g
  • Dimensions (WxHxD) 70.6 x 66 x 58.9 in / 1,794 x 1,677 x 1,497 mm
  • Dimensions when folded(WxHxD) 70.6 x 66 x 6.2 in/ 1,794 x 1,677 x 157 mm
  • Platform (WxHxD) 43.3 x 2.2 x 43.3 in / 1,100 x 57 x 1,100 mm
  • Net weight 331 lbs / 115 kg
  • Power supply Power adapter
  • Functions Display of user and patient name or ID,
    Display date of birth patient, TARE,
    Pre-TARE, HOLD, Auto-HOLD, CLEAR,
    Auto-CLEAR, RESET, lbs/kg switch-over,
    lbs/kg switch-over lock, cm/inch switch-over,
    Adjustable damping, BMI, BSA (Body surface
    area), Standby mode, Recall
  • Interfaces Ethernet, Wi-Fi , RS-232 (optional)
Unit of Measure (UOM)Each
