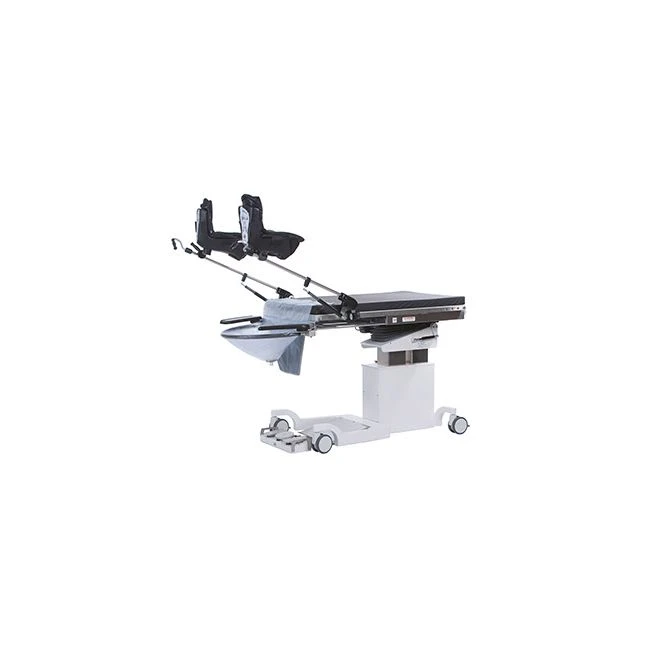

Image Diagnostics Inc Aspect 100UC Plus Urology Table with Standard Accessories, A100-1517

The Image Diagnostics Inc Aspect 100UC Plus Urology/Multi-Purpose Table is a full-function mobile urology table, featuring motorized four-way travel, elevation, and Trendelenburg Tilt. The UC Plus provides a large radiolucent imaging area for greater anatomic coverage and easy C-Arm access. With a 28"-wide tabletop, large patients can be safely positioned and supported up to the 525-pound capacity. The carbon fiber tabletop provides minimal x-ray attenuation over the entire imaging area. An optional cassette tray and along with a wide assortment of urologic accessories provide for multi-purpose use in both x-ray imaging and general urologic procedures.

Features:

• Large C-Arm imaging area.
• Built-in .5mm lead shielding; helps reduce scatter exposure to physician.
• Motorized elevation.
• Trendelenburg Tilt.
• Longitudinal and transverse tabletop motion.
• Elevation: 33.3" - 43.1" (84.5 - 109.4 cm) with tabletop pad.
• Longitudinal tabletop travel = 10" (25.4cm).
• Transverse tabletop travel = +- 3.5, 7" total (+-8.9 cm, 17.8cm total).
• Battery back-up operation.

Tabletop and extension:

• Carbon fiber tabletop with low x-ray attenuation.
• 2" (5cm) thick tabletop & tabletop extension pads with waterproof cover.
• Tabletop dimensions: 28" (W) x 46" (L) (71 x 117 cm).
• Radiolucent tabletop extension: 24" (W) x 34" (L) (61 x 86 cm).
• Imaging area, main tabletop: 25" (W) x 20" (L) (63.5 x 50.8 cm).
• Imaging area, tabletop extension: 24" (W) x 34" (L) (61 x 86 cm).

Includes:

• A100-1876 Stirrups Mounting Rail extension Kit.
• X100-1818: tabletop pad, 28" (711mm) x 46.50" (1181mm) x 2" (51mm) thick.
• A100-1400 Tabletop extension, 24" (610mm) W x 34" (864mm) (Metric tables #A100-2675).
• X100- 1817: Tabletop extension pad, 24" (610mm) x 34" (864mm) x 2" (51mm) thick.
• K000-0158: Pendant hand control.
• A100-1540: Foot switch control.
• U100-3025: Removable x-ray shield flap, for perineal end of table.
• C000-0571: Patient restraint straps.
• A310-056: Arm board, rail mounted, with pad and strap (A310-062 for metric rails).
• C000-0595: Urology drain bag support hoop.
• C000-0593: Disposable drain bag & hose assembly, (Qty of 1).
• C000-0492: Disposable covers for foot switch, box of 50.
• C000-0645: Disposable tabletop pad protector (qty. of 1).
• C000-0612: 5 gallon collection bag (qty of 1).
