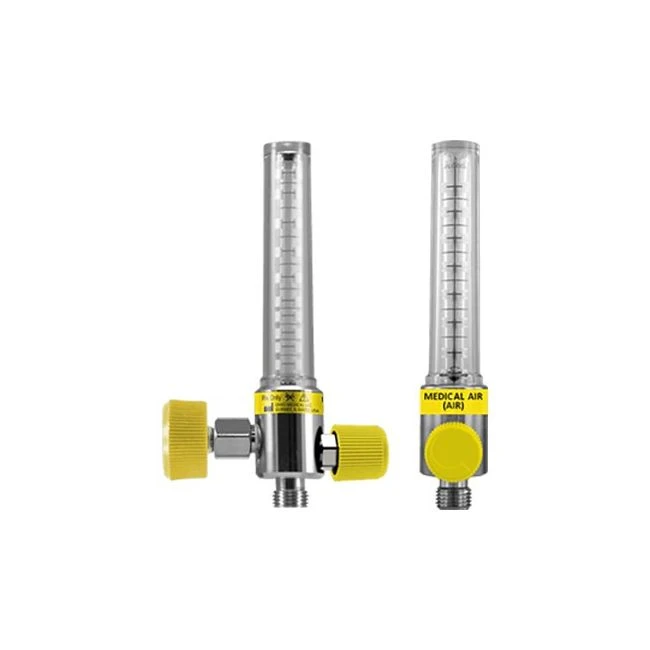

Ohio Medical FM-15UA-DH FLOWMETER 15 LPM DISS HAND TIGHT AIR USA

Name: Ohio Medical FM-15UA-DH FLOWMETER 15 LPM DISS HAND TIGHT AIR USA
Brand: Ohio Medical
SKU: CESS-823045-00001
Price: 92.71 USD
Availability: InStock

Write a review

In stock

SKU

CESS-823045-00001

MPN

FM-15UA-DH

Features Include: Chromed brass body, easy to read, "d" shape knob, color coded inner tube and labeling.

$92.71

Details

Amvex Thorpe (Tube) Style Flowmeters are offered in a complete line from Neonatal to Adult. Thorpe style is available in Oxygen, Medical Air, Heliox, CO2, and N2O. All Flowmeters come with a standard 1/8.

Features:

Back pressure compensated so flow accuracy is not affected by restrictions
Color coded inner tube and labeling
White background for enhanced visibility
No strip “D” shape knob
Includes an inlet filter and inlet extension

Specifications

Specifications
Discontinued	No
Additional Specifications:	Product Type: Flowmeter Dimensions: 1.1" (L) x 3.4" (W) x 5.5" (H) Gas: Medical Air Max Pressure: 690kPa (100psig) Transport/Storage Temperatures: -40°C to 60°C (-40°F to 140°F) Flow Rate: 15 L/min Wall Connection: DISS Handtight Increments: 0.5 L/min from 1 to 5 L/min, 1 L/min from 5 to 15 L/min Accuracy: +/- 0.5 L/min or +/- 10% of reading (whichever is greater) Min. Flood/ Flush: 50 L/min Options: No Power Take-Off Product Weight: 159g (5.6oz)
Unit of Measure (UOM)	Each
