Schiller Cardiovit AT-10 Plus Interpretive Resting ECG with optional Spirometry

Out of stock
SKU
CQ60114800
MPN
-

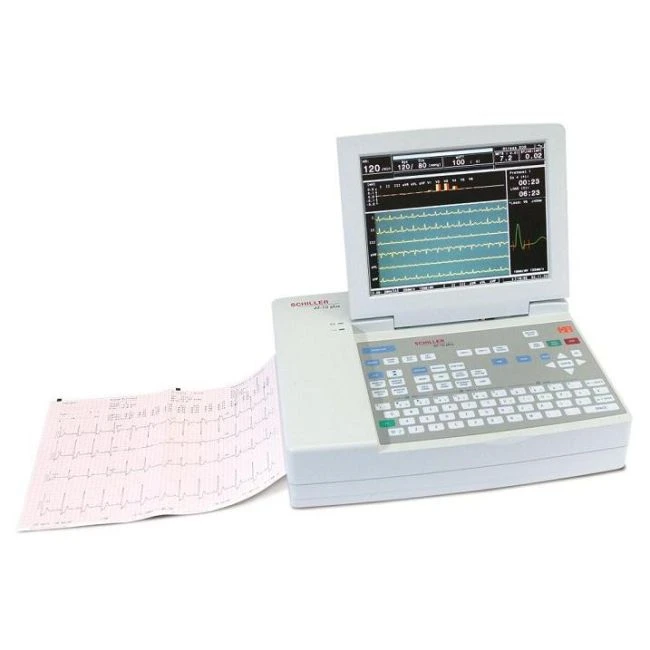

At A Glance: Built with a laptop-like design, the Cardiovit AT-10 Plus ECG Monitor features a TFT Color LCD tilt-screen, a full-size thermal printer, and a built-in LAN & VGA Output ports.

The Schiller Cardiovit AT-10 Plus ECG Monitor is a high-value performance, multi-purpose and uniquely designed 12-Channel Resting & Exercising ECG Monitoring device made to record & print-out electrical activities of the heart, using electrodes, over a period of time and, with a built-in spirometer, measure the air capacity of the lungs. It is an awesome choice for hospitals, medical facilities and private practices who specialize in EKG Procedures.

Built with a laptop-like design, the Cardiovit AT-10 Plus ECG Monitor features a TFT Color LCD tilt-screen, a full-size thermal printer and a built-in LAN & VGA Output ports. The System can be used wherever ECG and Spirometry Data must be obtained. Direct key functions and the on-screen menus allow the user to have a quick, hassle-free and dependable operation.

Features:

  • Resting ECG
  • Exercise ECG (ergometry)
  • Pacemaker measurement
  • Heart rate variability (HRV)
  • Signal-averaged ECG analysis (SAECG)
  • Thrombolysis software
  • Vectorcardiography (combined with SEMA)
  • Serial ECG comparison (combined with SEMA)
  • Complete spirometry tests

With the included software, the AT-10 Plus ECG Monitor has all the included requirements of an integrated diagnostic workstation. It features resting & exercise ECG recording, pacemaker detection, HRV (Heart Rate Variability) analysis and spirometry tests. The AT-10 Plus comes with Pre-programmed settings that are easily activated. Preferred Settings can be configured and stored by the users at a press of a key. Because of this, learning and operation become fast and easy.

The AT-10 Plus can hold up to 350 ECG Recordings and because of the built-in LAN ports, can easily be integrated ith existing hospital information systems (HIS) for optimal workflow. The Patient's Data and recordings can be transferred with an XML format. Also, to save paper, you can first transmit the 5-minute full disclosure view recording Schiller SEMA-200 data management system on the PC for final editing or printout

Specifications
DiscontinuedNo
Additional Specifications:
Printing FormatHigh-Resolution Thermal Head Printer
Memory350 Records
FunctionsSingle button operation for printing, storage and transmission
DisplayColor LCD Tilt-Screen
Includes10-Lead patient cable; 10-Snap clip electrode adapters; 500 Disposable electrodes; One (1) pack of paper; Power cable
Warranty3 Year
ComplianceIEC/EN 60601-1; UL 60601-1; C22.2 No. 601.1-M90; IEC/EN 60601-2-25; IEC/EN 60601-1-2 (EMC); ATS, ERS
