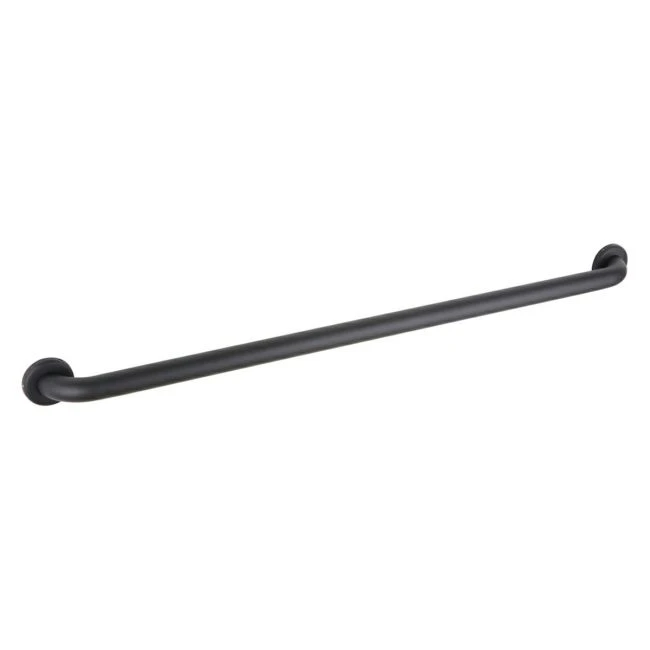

Bobrick 150CX36.MBLK 36" Straight Grab Bar with Concealed Flange, Matte Black

Details

Material:
  • Tubing - Fabricated of type 304 stainless steel. Exposed surfaces are powder-coated matte black.
  • Concealed Flange - 0.5" deep, type 304 stainless steel, 3" in diameter furnished with 3 stainless steel set screws and one back plate. Flanges and center posts are welded to tubing
Mounting:

Clearance is distance between finished wall surface and inner edge of tubing. Standard clearance furnished is 1.5". Required mounting height is 33" to 36" from top of grab bar gripping surface to finish floor. 36" horizontal grab bar should be installed on back wall and 42" horizontal grab bar installed on side wall or partition stall. Screws (not furnished).

In stock
SKU
CESS-861006-00001
MPN
150CX36.MBLK
Features include: ADA compliant, powder coated matte black finish, stainless steel construction.
$78.45
Specifications
DiscontinuedNo
Additional Specifications:
  • Product Type: Grab Bar
  • Dimensions: 36" (L) x 1.5" (W)
  • Tube Diameter: 1.5"
  • Body Material: Type 304 stainless steel
  • Configuration : Straight
  • Accessibility : ADA Compliant
  • Finish: Matte Black
Unit of Measure (UOM)Each
