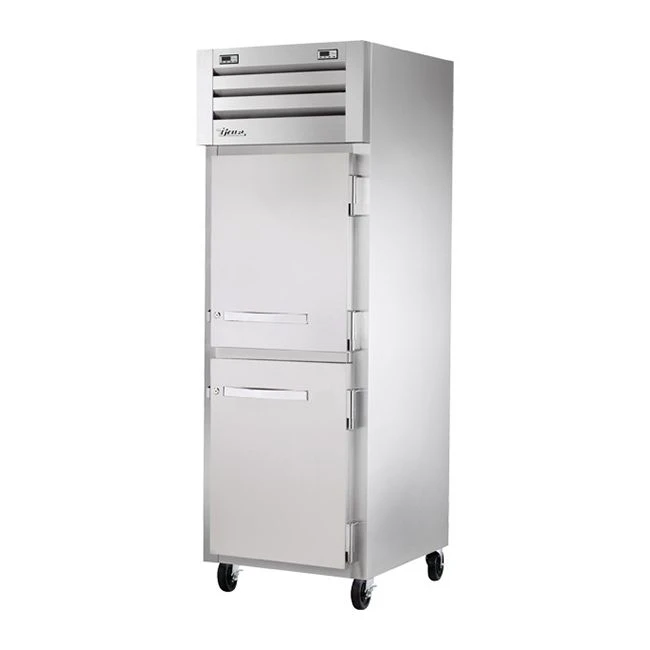

Reach-In Solid Half Swing Door Dual Temperature Refrigerator/Freezer with Hydrocarbon Refrigerant
Design
True’s solid door reach-in’s are designed with enduring quality that protects your long term investment.
Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs and exceptional food safety.
Refrigeration System
Equipped with two, independent, factory engineered, self-contained, capillary tube refrigeration systems using environmentally friendly environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
Refrigerator located in top section; freezer on bottom.
High capacity, factory balanced refrigeration system that maintain colder standard temperatures for the best in food preservation. Refrigerator holds 33°F to 38°F (.5°C to 3.3°C); freezers holds -10°F (-23.3°C).
State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
Cabinet Construction
Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Door
Lifetime guaranteed bolt style door locks standard.
Lifetime guaranteed heavy duty all metal working door handles.
Positive seal self-closing doors with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four (4) per door section.
Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
Shelving
(3) Heavy duty, PVC coated, wire shelves per section.
Lighting
LED interior lighting,
Model Features
Two (2) exterior digital temperature displays, one for refrigerator section and one for freezer.
Evaporator epoxy coated to eliminate the potential of corrosion
Curb mounting ready.
NSF/ANSI Standard 7 compliant for open food product.
Electrical
Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
115/60/1 NEMA-5-15R
Optional Features/Accessories
6" (153 mm) standard legs.
6" (153 mm) seismic/flanged legs.
6" (153 mm) stainless steel legs.
Hasp lock.
Field reversible hinge.
Additional shelves.
Stainless back. (STR, STA, STG)
Security package.
Freezer on top section model available "STG1DTA-2HS-HC".
