The SE-2003 Analysis system efficiently enhances your user experience with cutting-edge diagnosis technology, customizable workflows, and intelligent morphology analysis, to assist doctors with accurate diagnoses.

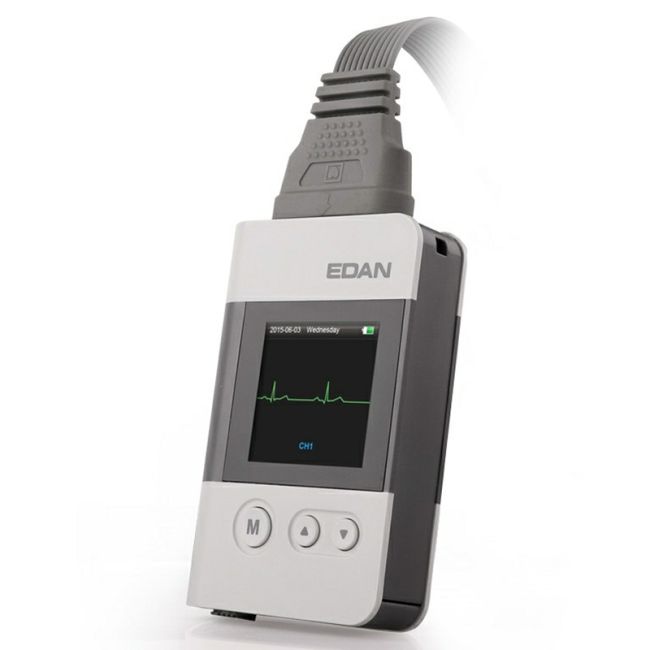

The Edan SE-2003 Holter sets a new standard with lightweight and compact digital recorders, offering meticulously optimized workflows and customizable parameters tailored to fulfill your clinical requirements. This sophisticated device excels in capturing the intricate electrical activity of the heart, and analyzing with robust analysis software for comprehensive data interpretation.
Primarily designed for the detection of arrhythmias and abnormal heart rhythms the SE-2003 goes beyond by providing automated diagnostic tools, helping users quickly locate and filter abnormal readings with dynamic searches based on personal categorizations.
Event Marker
By pressing M on the device, special events can be marked on the recorded signals. Thus, bringing needed attention to abnormalities in the signal when making a diagnosis.
IP27 Waterproof Design
To ensure easy cleaning and to prevent accidental water damage.
Lightweight Design
Weighing only 50g, the lightweight design gives the Se-2003 unmatched portability that does not hinder routine ECG tests.
Redefine the Software to Fit Your Preference
Users can easily combine commonly used functions together. The top toolbar can also be customized based on preference. Thus, creating a personalized and comfortable workflow for every cardiologist.
Assistant Diagnosis Tools:
Finding distinct patterns and beats in the recording can consume much needed time. The software provides multiple graphical tools that help users locate and select abnormalities using corresponding graphical elements.
The R-R histogram presents the full group of recorded RR intervals, helping to locate unique heartbeats easily
The Waveform superposition heat map exposes abnormal beats on overlapped waveforms
The lorenz plots (poincare plot) helps identify those beats with nonhomogenous beat-to-beat variability
Extensive Analysis Tools:
ST Evaluation chart
AFIB detection
HRV analysis
Holter Software:
Data Processing:
Loading time is less than 20 seconds
Full disclosure of waveforms
Download data via micro SD card or USB cable
24/48/96 hours or 8 days of ECG data recording
Smooth Workflow:
Customizable workflow and reports
Bulk modification and fast editing
Comprehensive histogram
ST-segment analysis and myocardial ischemia evaluation
Advanced Analysis:
Atrial fibrillation/flutter (A FIB/FLUT) analysis
Heart rate variability (HRV) analysis
Heart rate turbulence (HRT) analysis
Obstructive sleep apnea (OSA) analysis
EMR Compatibility:
GDT/XML protocol support
Included Accessories:
3-Channel holter recorder
7-Electrode ECG cable (AHA)
1GB SD card
USB Cable for holter recorder connection with PC
Adult disposable adhesive electrode
Holder
Belt
Carrying bag
Holter analysis software ? One software license per PC (Can be used with multiple recorders)
Display Functions:
One-channel of waveform
Recording time
System time
Patient ID
Patient name
Event marker
Functions
Pacemaker detection
Lead-off detection
Low-power detection
Event marker function
Auto identification of cable
