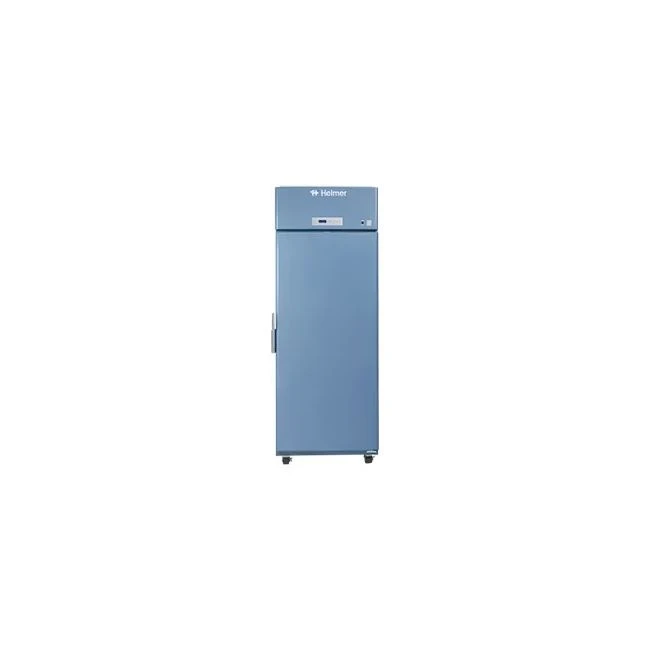

GX solutions professional medical-grade -30?C lab freezers are designed for the unique needs of critical healthcare applications such as the storage of samples, reagents, controls, and frozen vaccines. Professional medical-grade freezers deliver optimized control in three important areas: temperature, noise, and energy management. Powered by OptiCool technology, GX Solutions provide improved performance and user experience through energy efficiency, low noise levels, and stable storage environments to safeguard your valuable patient samples, frozen vaccines, and more.
Features:
Designed to safely store reagents, samples, controls, and frozen vaccines within an exceptional temperature-controlled environment
OptiCool technology pairs a variable capacity compressor (VCC) and natural hydrocarbon (HC) refrigerants to ensure optimal temperature uniformity, recovery, and stability, efficiently manage energy consumption, and meet evolving environmental regulations
Optimized temperature uniformity, recovery, and stability create best environment for sample and vaccine storage
Reduced energy consumption (35-45% more efficient than traditional technology)
U.S. environmental protection agency SNAP (Significant new alternatives Policy) compliant refrigerants
Quiet operation (52 dB) creates fewer distractions and better working environment
Digital microprocessor temperature controller with built-in alarms, includes min/max display and reset
Cabinet built with high-quality construction meets or exceeds performance standards required by the medical and scientific industries
Solid door standard
Adjustable powder-coated shelves
Top access port
Energy star certified
Meets NSF/ANSI 456 vaccine storage standard temperature performance requirements (must be configured with NSF/ANSI 456 vaccine storage certification option which includes certificate of calibration)
Compatible with ADA compliant counter tops (undercounter)
Facility Supply Rating
Branch circuit with earth ground, meeting plug/cord ratings as well as local electrical safety codes and requirements.
110-120V AC: 15 A (minimum)
220-240V AC: 10 A (minimum)
Power Plug/Power Cord Length
NEMA 5-15 hospital-grade | 115V 60Hz, 8 to 10 ft (2.4-3.0m) Inquire about additional plug/cord options
Certification/Agency Listing
QPS (Certified to UL and CSA Standards), IEC/UL61010-2-011: 2016 | IEC 61010-1:2010, AMD1:2016, ETL certified to NSF/ANSI 456 vaccine storage standard
Energy Star
Energy Star certified high performance freezer
Indoor/Outdoor Use
Indoor use only, non-residential
Application Environment
Non-corrosive, non-flammable, non-explosive
Certifications/Regulatory Approvals
QPS (Certified to UL and CSA Standards) IEC/UL61010-2-011:2016, IEC 61010-1:2010, AMD1:2016, CE 2797, RoHS, ETL
Refrigeration
Refrigeration system - VCC compressor-based, forced-air hydrocarbon
Recessed floor contains spills for easy clean up and to maintain integrity of other stored products
Key lock, settings security and optional access control
Featured Options & Accessories
Integrated Electromagnetic Access Control
Horizon access control provides fail-secure digital keypad access. Integrated lock is unlocked by entering a user code on the keypad (Factory installed). Entry via PIN. Up to 100 user ID's
NSF/ANSI 456 Vaccine Storage Certification
Laboratory refrigerator or freezer is certified to NSF/ANSI 456 vaccine storage standard with this option. Package includes certificate of calibration generated with an ISO 17025 accredited reference thermometer and NSF/ANSI 456 and ETL labels
Solid Stainless Steel Drawers
Liquid-tight drawers contain spills and are fully extendable
Ventilated Drawers
Fully extendable powder-coated drawers (hardware is included)
Seismic Anchor Kit
Secure your refrigerator to the building floor with this Seismic-Rated floor anchoring system. For field installation (for 20 and 25 cu ft refrigerators and freezers, GX models)
