Details

MetroMax 4 is an all polymer corrosion proof shelving system with removable open grid mat sections. Shelf mats, beams and posts have built-in Microban antimicrobial product protection. All shelves have circumferential capture of corner posts for superior stability, performance and structural integrity. Rigid construction delivers stationary units with maximum capacity of 2000 lbs. (907kg) evenly distributed. Mobile units consist of a MetroMax i bottom shelf and MetroMax 4 upper shelves combined with posts and casters. Carts are capable of transporting a maximum total unit load of 600 lbs. (272kg) evenly distributed. Units assemble easily; preassembled shelves mount on four one-piece wedges along numbered posts and may be adjusted on 1" (25mm) increments. NSF Listed for all environments.

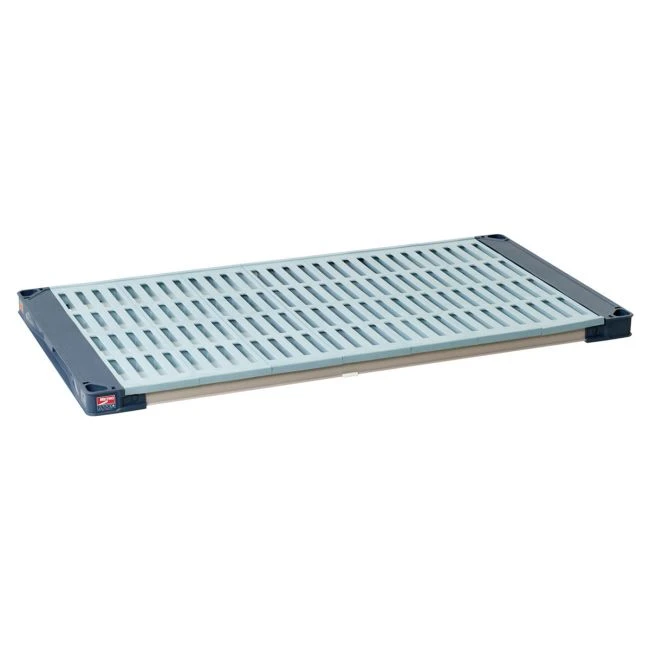

MetroMax 4 Grid Shelves include the shelf frame, open grid mats to promote air flow and (1) bag of four wedges per shelf order. Smooth, flat surfaces protect packaged shelf contents from unwanted rips, tears or damage. These preassembled shelves are ready to use right out of the box. One piece wedges help locate the desired shelf position on numbered MetroMax i posts. Shelves mount on the wedges easily and a unit can be assembled in minutes without tools. Part of the MetroMax Platform, MetroMax 4 is compatible on the same shelving units with MetroMax i and MetroMax Q shelves. The 6" (152mm) wide shelf mats easily remove from the shelf frame for cleaning by hand or in a commercial washer. The load capacity (evenly distributed) per shelf is 400 lbs.

Rust & Corrosion Proof: All-polymer construction withstands moisture, chemicals, and harsh environments.

Proven Stability: Proven Metro corner design and rigid four-sided shelf frame deliver sturdy stationary, mobile, or high-density track shelving configurations.

Easy-to-Clean: 6" (152mm) wide shelf mats easily remove from the shelf for cleaning by hand or in a commercial washer / dish machine.

Microban Antimicrobial Product Protection is built into the shelf mats, frames, and posts to inhibit the growth of bacteria, mold, mildew, and fungus that cause odors and product degradation. Microban product protection keeps the product “cleaner between cleanings”.

Weight Load Capacities: (Evenly Distributed) Shelf 54" (1372mm) or longer: 500 lbs. (227kg) Stationary Unit: 2,000 lbs. (907kg) Mobile Unit (with stem casters): up to 750 lbs. (340kg). Multiply the caster load rating by 3 to determine actual rating [not to exceed 750 lbs. (340kg)].

Fast, Easy Assembly: Shelves are ready to use right out of the box. One-piece wedges securely attach to the posts – Raised beads on the back of each wedge snap into the grooves on the post. Window on wedge aligns with numbers on the post to locate the desired shelf position. Shelf seats into position over the posts and wedges. A unit can be assembled without tools in minutes.

Open Grid: Promotes air flow and light penetration.

End Beams, Adjustable Foot and Socket, Shelf Wedge Connector: Reinforced nylon.

Continuous Temperature Exposure Range (with shelves under load): -20/120° F (-29/49° C). For cleaning the maximum intermittent temperature exposure is 212° F (100° C).
