Details

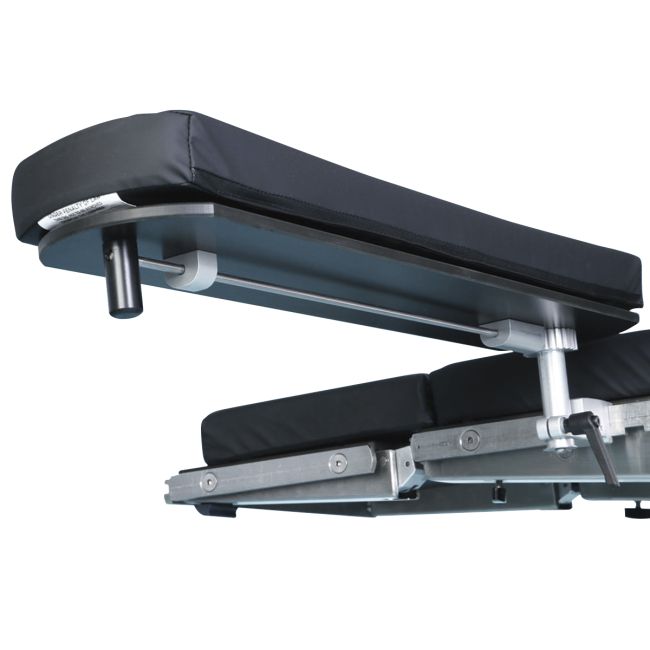

This adjustable-height surgical armboard accommodates a wide-range of patients and their procedural needs, as well as adjusting vertically to allow the use of x-ray tops without sacrificing a level surface on the O.R. table. Fits all standard U.S. operating room table side rails and is lightweight, extremely durable and radiolucent.

Features:

• This armboard adjusts vertically to be level with O.R. table, either with or without X-ray tops
• To adjust armboard vertically, simply place armboard on side rail, loosen handle and raise to correct table height and tighten handle
• Simply pull finger-trigger at end of armboard and quickly move to required position. Release trigger to lock tight
• Eliminates need for multiple-size pads
• 2" (5 cm) conductive vinyl covered foam Pad sold separately: Deluxe or Softcare
• Pad attaches to armboard with adhesive backed hook & loop fastener
• Attaches to rail of surgical table anywhere on rail
• Single-person installation
• Product not made with (NRL) Natural Rubber Latex
• Device supports 500 lbs (227 kg) proportional patient load (6'4" (193 cm) tall patient per 99% human body model)
• Product warranty covers product from manufacturing defects for period of 2 years
• Product is maintenance-free, check product condition before next use
• Life of device is 5 years under normal use
• Store device between -4?F to +86?F (-20?C to 30?C)

Required Pad: Choose one

• 2" (5 cm) Deluxe Armboard Pad - 508-0071
• 2" (5 cm) Softcare Armboard Pad - 508-0151

Instructions for Use:

Become familiar with the features of patient positioning device before use with a patient. Always practice use on a nurse, physician or appropriate volunteer prior to using clinically.

Attaching Armboard to Table

• Attach Armboard onto surgical table anywhere along table side rail

Adjusting Armboard

• Loosen Adjustment Handle - raising or lowering Armboard to desired height, then lock handle
• Pull Directional Trigger, rotate to desired position, release to lock

Detaching Armboard from Surgical Table

• Press Release Trigger and lift Armboard from table

Intended Use: Intended Use is to hold patient's arm with range of motion of 180?.

Disposal:

• General - Prevent infection by cleaning and disinfecting product before disposal
• Packaging - Dispose packaging material via household waste according to national requirements
• SchureMed accepts back used or retired products - or dispose of product in accordance with national requirements

Product Use Warnings:

Maximum load should not exceed appropriate proportion of a patient weighing 500 lbs. Use care with low-maximum load capacity surgical tables that accessory rails are not overloaded.

Cleaning Recommendation: Follow current Association of periOperative Registered Nurses (AORN) Journal Guidelines for proper cleaning and disinfection procedure.

Caution: Strictly read/follow manufacturer's directions for cleaning fluids. DO NOT use cleaners containing phenolics.

• Remove major contaminants from accessory with disposable materials. Follow appropriate bio-hazard waste disposal procedures
• Apply cleaning fluid liberally to entire accessory and wipe with clean, lint-free cloth until all moisture and cleaning fluid is removed from accessory
• Let accessory dry
